Nano-wood shield: New Zealand-led review maps metal, metal-oxide and bio-based

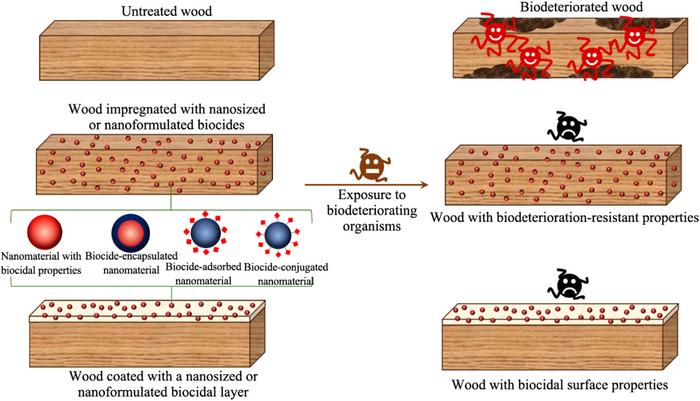

A sweeping analysis published in the Journal of Bioresources and Bioproducts argues that nanotechnology has moved from “scattered academic curiosity” to the only realistic path for creating genuinely biodeterioration-resistant wood capable of replacing carbon-heavy steel and concrete in mid-rise construction. The 24-page review, handling more than 250 recent papers, says that copper, silver, zinc-oxide, titanium-dioxide, chitosan and lignin nanoparticles—alone or in hybrid carriers—can simultaneously block brown-, white- and soft-rot fungi, termites, marine borers and mould at loadings one-tenth of those required for conventional metal-salt preservatives. Crucially, the nanoparticles can be locked inside cell walls or bonded to silane networks, reducing environmental release to below 8 % even after 28 days of leaching tests, a figure that rivals the performance of phased-out chromated copper arsenate (CCA) but without chromium or arsenic.

The authors, pooling experience from New Zealand’s Scion and Nanjing Forestry University, note that earlier pressure-impregnation routes demand 20–80 kg of biocide per cubic metre of timber, driving up cost and ecological risk. In contrast, 1–3 kg m⁻³ of 20 nm CuO or 15 nm Ag-Cu alloy nanoparticles delivered the same decay rating (EN 350 class 1) against the most aggressive copper-tolerant brown-rot Serpula lacrymans. Likewise, 500 nm zinc-borate cubes mineralised inside radiata pine lumen suppressed not only fungi but also Coptotermes formosanus termites and achieved 96 % mould-control on Aspergillus niger while bestowing flame-retardancy. When the same metals are encapsulated in chitosan or lignin carriers, the review shows release rates fall below 5 % and UV stability of the underlying wood more than doubles, addressing a long-standing weakness of traditional copper azole treatments.

Economic modelling cited in the paper indicates that at industrial scale CuO or ZnO nanodispersions would add only USD 45–70 per cubic metre to plantation pine—a premium easily offset by the 30- to 50-year service-life extension and the avoidance of future re-treatment cycles. The reviewers caution that inhalation exposure during sanding remains a regulatory hurdle, but note that on-tool extraction and water-borne delivery reduce workplace risk to “acceptable margins” already adopted by European furniture makers testing Ag-LDH (layered-double-hydroxide) coatings. Life-cycle assessment data suggest that nano-protected timber sequesters 180–220 kg CO₂ m⁻³ while avoiding 1.2 t of embodied emissions had the same structural function been fulfilled by galvanized steel.

The team concludes that next-generation products will probably marry two or three biocidal metals with bio-based carriers—such as Cu-lignin or Zn-chitosan—to deliver broad-spectrum activity, low leaching and multifunctional performance (UV, fire, moisture) in a single vacuum or dip treatment. “If policy makers align toxicity guidelines with realistic exposure scenarios,” the authors write, “nanomodified wood could unlock a global carbon sink worth 0.4 Gt CO₂ annually by 2040.”
