Wound-bamboo straw flexes past paper, PP and PLA: industrial-scale trial shows 19 MPA strength, 60% lower water uptake

As single-use plastic straws disappear from counters from Seattle to Singapore, the paper replacements most cafés hand to customers have become a daily frustration: they wilt in hot bubble tea, split in carbonated cola and can bleed waterproof coatings into the drink. A new study released today argues that the humble bamboo pole—steamed, sliced thinner than postcard stock and wound like paper tape—can deliver the first genuine “drop-in” alternative that is stronger when wet, cheaper at the factory gate and almost carbon-neutral.

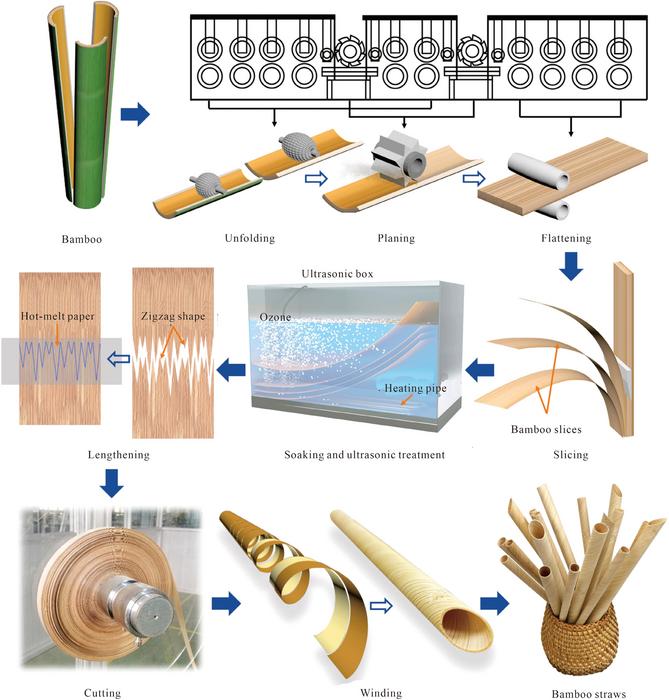

The work, published in the Journal of Bioresources and Bioproducts, is the first to move bamboo straws from craft-scale sticks or drilled-out culms to a fully mechanised, metre-per-minute process able to feed global supply chains. Scientists at the International Centre for Bamboo and Rattan and Fujian-based Long Bamboo Technology Group flatten 3-year-old Moso bamboo in a 150 °C steam press, shave it into 0.3 mm or 0.5 mm ribbons and then subject the ribbons to a simultaneous 60 °C water soak and 40 kHz ultrasonic bath. The combination leaches out chromophores that would otherwise tint the drink and removes starch that normally fuels mould during ocean shipping. After drying to 7 % moisture, the pale strips show 92 MPa tensile strength—three times that of straw-grade white paper—and can be tied into a knot without fibre fracture.

An automatic winding machine overlaps two ribbons at a 50° helix, feeds food-grade water-borne polyurethane adhesive at the seam and spits out continuous tubes that are cut into 8, 10 or 12 mm diameters. Mechanical tests on the finished straws show axial compressive strength of 16.4–19.0 MPa, bending strength of 14.2–15.0 MPa and a tip puncture force high enough to pierce a fresh lime without buckling—something polypropylene, PLA and conventional paper straws failed in side-by-side trials. When immersed for two hours in 80 °C water, cola and 4.7 % beer, bamboo straws absorbed roughly 60 % less liquid than coated paper rivals and retained 4.4 times higher wet strength under diametral compression.

Consumer acceptance was tested in blind trials at three Beijing beverage shops involving 1 500 patrons aged 18–27. More than 90 % rated the bamboo straw “satisfied” or “very satisfied” for hardness, taste neutrality and aesthetics; 62 % placed it as first choice versus 21 % for paper and 16 % for PLA. Cost modelling using local Fujian bamboo prices of US$100 per tonne puts raw-material expense at 0.07 US cent per straw; even after labour, adhesive and energy, the ex-works price is 1.4 US cents—half the current wholesale price of paper straws and one-third that of PLA. A cradle-to-gate life-cycle screen estimates 0.32 g CO₂-equivalent per straw, about one-tenth the footprint of polypropylene and 30 % lower than recycled-content paper tubes.

The authors say the process can be dropped into existing paper-straw plants by adding the flattening, ultrasonic and winding modules, enabling a single line to turn out 100 million straws a year on the same footprint. They are now in talks with major bubble-tea chains and an international airline that has pledged to eliminate plastics by 2026. “Bamboo grows in 3–4 years, sequesters carbon while it grows and needs no farmland,” notes corresponding author Changhua Fang. “We simply unlock what nature already does best—flexibility and toughness—and roll it into a straw.”
