Facile strategy for screening and fabricating metal-organic framework-based sensors for highly sensitive detection of iodine gas

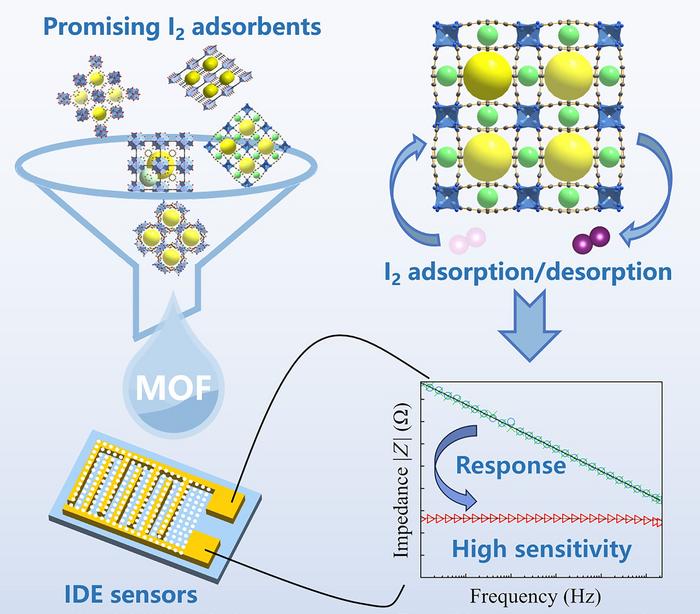

image: Chemically stable metal-organic frameworks with good affinity for iodine (including Zn(1,3-BDP), UiO-66, UiO-66-NH2, etc.) were computationally screened and drop-casted upon interdigitated electrodes to achieve highly sensitive electrical detection of iodine gas.
Credit: Nano Research, Tsinghua University Press
Radioactive iodine gas detection has significant applications in the nuclear industry, particularly in nuclear accident scenarios and nuclear fuel reprocessing facilities. Metal-organic frameworks (MOFs), owing to their high specific surface area, large pore volume and structurally tunable nature, hold great promise as sensing materials for the electrical detection of iodine gas, by combining with impedance spectroscopy techniques.
A team of material scientists led by Guangcun Shan from Beihang University in Beijing, China recently proposed a novel and feasible method for investigating sensing materials and strategies to fabricate high-performance iodine gas sensors. By integrating computational screening, material optimization and experimental fabrication, the research team successfully fabricated iodine sensors with high sensitivity, rapid response, and excellent cycling stability. This work offered an innovative solution for the detection of radioactive iodine gas in nuclear accident emergency monitoring and nuclear fuel reprocessing facilities.
The team published their research in Nano Research on June 23, 2025.
Chemically stable MOFs with good affinity for iodine (including Zn(1,3-BDP), UiO-66, UiO-66-NH2, etc.) were computationally screened and drop-casted upon interdigitated electrodes (IDEs). Upon exposure to I2 gas, a similar electrical response change occurred for all the IDE sensors, despite variations in impedance ratio. In particular, UiO-66-coated sensors exhibited an impedance ratio >103 times, while the modification of amino groups (-NH2) enhanced the sensitivity, exceeding 104 times for UiO-66-NH2, and was accompanied by a better iodine uptake. Notably, the sensors fabricated from Zn(1,3-BDP), which also contained nitrogen atoms, exhibited excellent comprehensive sensing performance, including high sensitivity (with impedance ratio achieving 1.4×106 times), good recyclability, rapid response speed (with an impedance change of 250 times within 3 minutes), low detection limit (about 29 times under 300 ppm I2 vapor at 25℃) and high anti-interference ability.
“We found that the adsorbed I2 introduced new states, especially band gap states into the density of states of pure MOF materials, which played a significant role in lowering the bandgap and enhancing the electrical conductivity,” emphasized Professor Guangcan Shan, corresponding author of the research work in the School of Instrumentation Science and Opto-electronics Engineering at Beihang University. Using density functional theory (DFT) calculations, the research team confirmed that iodine molecule adsorption significantly reduced the bandgap of the MOF material, thereby enhancing its electrical conductivity.
MOF-based sensors developed in this study also exhibited strong anti-interference capability. Under environment of pure air, ethanol and acetone at 70℃ for 1h, Zn(1,3-BDP)-based sensors exhibited the impedance ratio below ×1.5 times; after exposing to methanol and water, the impedance ratio was also lower than ×2.0 times. This made sensors well-suited for deployment in complex industrial environments.
Other contributors include Haoyi Tan from the School of Instrumentation Science and Opto-electronics Engineering at Beihang University in Beijing, China; and Hongbin Zhao from the Department of Materials Science and Engineering at City University of Hong Kong in Hong Kong, China.
The work was carried out at National Supercomputer Center in Tianjin, and the calculations were performed on Tianhe new generation supercomputer. This work was financially supported by the National Key R&D Program of China (No. 2016YFC1402504).
