From waste to wardrobe: Spent metal-capturing aerogel reborn as luxury-leather tanning agent
Tannery effluent is stripped of chromium, aluminum and zirconium by a chitosan-cellulose sponge that, once loaded, is melted straight into hides—no landfill, no acid recovery, no extra chemicals

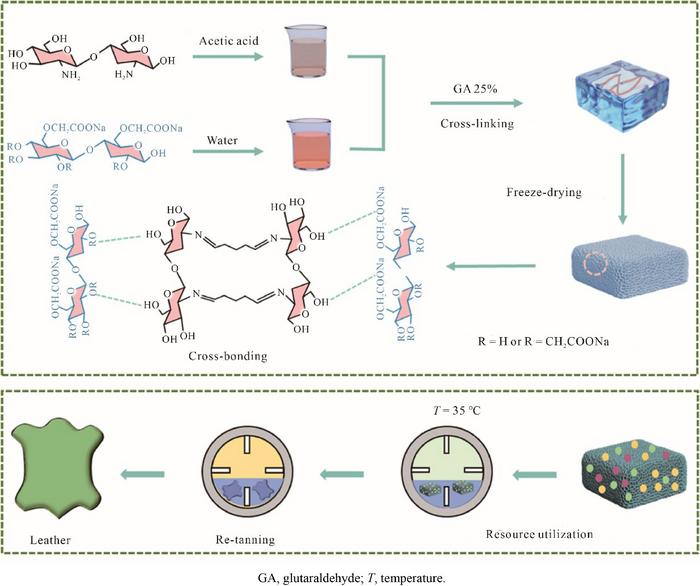

image: Tannery effluent is stripped of chromium, aluminum and zirconium by a chitosan-cellulose sponge that, once loaded, is melted straight into hides—no landfill, no acid recovery, no extra chemicals
Credit: Institute of Biomass and Function Materials & National Demonstration Centre for Experimental Light Chemistry Engineering Education, College of Bioresources Chemistry and Materials Engineering, Shaanxi University of Science and Technology, Xi'an 710021, China
Chrome tanning turns collagen into supple, heat-resistant leather, but roughly one third of the chromium remains in the rinse water. Traditional plants precipitate the metal with alkali, generating sludge that is either landfilled or leached with strong acids—both routes carry secondary pollution risk. A team from Shaanxi University of Science & Technology now offers a cleaner choreography: trap the metals in a lightweight bio-aerogel, then transfer the entire sponge—metal cargo included—into the next drum cycle as a combined retanning and filling agent.
The material begins as a 2 % acetic-acid solution of chitosan extracted from discarded enoki-mushroom roots. Sodium carboxymethyl cellulose is blended in, and glutaraldehyde triggers a Schiff-base cross-link that survives freeze-drying. Scanning electron micrographs reveal a ladder-like 3-D network whose pores peak at 70 µm; nitrogen adsorption gives a BET area of 70.6 m² g⁻¹ and abundant –NH₂ and –COO⁻ sites.
Batch tests with 800 mg L⁻¹ synthetic liquor show maximum capacities of 250, 111 and 100 mg g⁻¹ for Cr³⁺, Al³⁺ and Zr⁴⁺ respectively at 25 °C, pH 4 and 30 % CMC content. Pseudo-second-order kinetics (R² ≥ 0.984) and a Langmuir fit (R² ≥ 0.958) point to monolayer chemisorption, while negative ΔG values down to –5.9 kJ mol⁻¹ confirm spontaneity that improves modestly at 45 °C. X-ray photoelectron spectra record shifts of Cr 2p₃/₂ and Al 2p peaks toward lower binding energy, evidence of lone-pair donation from –NH₂ and –OH to the metal centres; parallel Na 1s loss indicates concurrent ion exchange.
The clever twist comes next. Instead of stripping the metals, technicians swell the loaded gel, disperse it with a high-shear paddle and pump the viscous sol directly into the retanning stage. Because the gel fragments span 500–15 000 Da, low-molecular pieces penetrate collagen fibrils while heavier fractions occupy inter-fibre voids, acting as a polymer filler. Chrome, aluminum or zirconium atoms anchored to the chains form inner-orbital complexes with collagen carboxyls, raising hydrothermal stability: shrinkage temperature climbs 8.3 °C for Cr-laden gel, 5.2 °C for Zr and 2.5 °C for Al compared with an untreated crust. Tensile strength jumps 34 % and tear strength 40 % with no loss of softness; scanning electron images show more uniform fibre separation, explaining the mechanical gains.
Life-cycle screening suggests the route could divert 0.7 kg Cr₂O₃ and 2 kg sludge per tonne of hide while avoiding 6 kg of sulfuric acid normally used for metal recovery. The aerogel itself is derived from food waste, and because the metals never leave the tannery, transport emissions linked to off-site recycling vanish. Designers estimate operating cost parity once throughput exceeds 20 t day⁻¹, a scale common in modern beam-house operations.
Although the study used simulated liquor, the team is now validating the material on a 200 L pilot fed with real effluent from a nearby tannery that employs aldehyde pre-tanning. Early runs maintain 92 % of lab capacity even in the presence of masking organics such as collagen hydrolysate. If trends hold, the sponge could become the first adsorbent that earns its keep not by being regenerated, but by becoming an ingredient—transforming yesterday’s pollution into tomorrow’s patent leather.
