Plasma-zapped lignin turns polypropylene "green" and unbreakable

A tornado of electricity has become the newest weapon in the battle to green commodity plastics. By whirling soda lignin inside an argon gliding-arc reactor for seconds, then melt-blending the powder with polypropylene, European scientists have turned a notoriously brittle bio-filler into a stretch-tolerant reinforcement that survives repeated recycling. The solvent-free technique, described in the Journal of Bioresources and Bioproducts, lifts strain-at-break from 115 % to 450 % at only 10 % lignin loading and retains 98 % of that ductility after two full extrusion cycles—performance previously attainable only with maleic-anhydride compatibilizers or expensive reactive extrusion.

Polypropylene now tops 76 million tonnes per year yet barely 9 % is effectively recycled. Blending it with abundant lignin, the antioxidant-rich residue of pulping, could cut petro-carbon demand while adding UV and fire protection. Yet hydrophilic lignin and hydrophobic polypropylene repel one another, so cracks nucleate at the first tug. Conventional fixes—esterifying lignin, grafting polyethylene glycol, or adding maleic-anhydride-grafted PP—require wet chemistry, extra energy and sometimes toxic solvents.

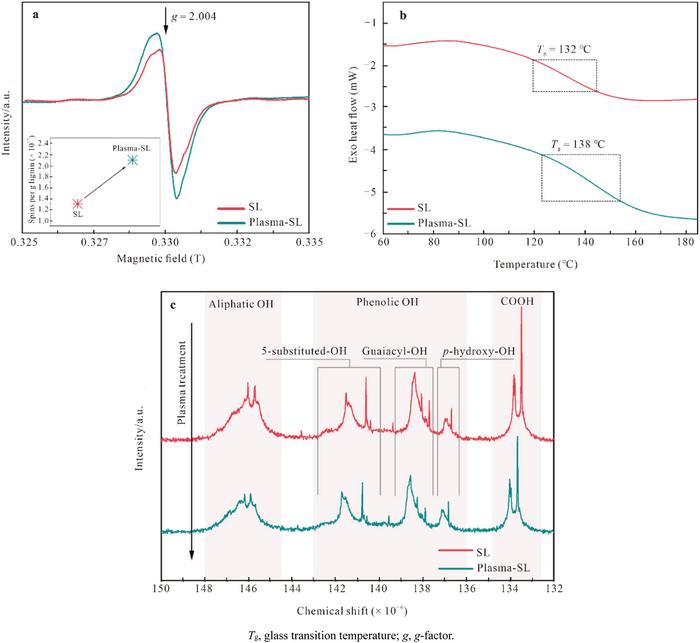

The new study borrows a "gliding-arc tornado" rig originally designed for plasma medicine. A vortex of argon drags 1–10 µm lignin particles through a 5 kV arc for milliseconds; energetic electrons cleave β-O-4 ether bonds and abstract hydrogen, boosting phenoxy-radical concentration by 60 %. Quantitative ³¹P-NMR shows aliphatic and phenolic –OH groups fall 30–39 %, while the glass-transition temperature rises 6 °C, hinting at a more condensed, less polar network. The black powder exits the reactor un-agglomerated and ready for compounding.

Using a twin-screw extruder at 170–185 °C, the team incorporated 5, 10 or 20 wt % of either pristine or plasma-treated lignin into isotactic PP. DSC traces reveal no new crystalline phases, yet the degree of crystallinity—calculated on the PP fraction alone—edges up from 52 % to almost 60 % as plasma-treated particles nucleate α-spherulites. Thermogravimetric analysis in air shows onset of PP degradation pushed from 300 °C to 325 °C with 10 % plasma-lignin, a gain credited to hindered-phenol radical trapping. Rheology at 190 °C delivers a surprise: viscosity at typical injection-moulding shear rates is slightly higher for treated-lignin blends, indicating stronger interfacial bonding, yet the melt still shear-thins sharply, promising easy processing.

The mechanical payoff is dramatic. Neat PP breaks at ~500 % strain; a reference blend with 10 % untreated lignin collapses near 115 %. Replace the filler with its plasma-treated twin and the same specimen stretches to 450 % before failure, a 294 % jump. Young’s modulus climbs 30 % to 1.57 GPa, while yield strength remains within 12 % of the virgin resin—an envelope previously thought impossible without chemical coupling agents. Scanning electron micrographs of cryo-fractured surfaces show 200 nm lignin domains evenly dispersed and coated with a thin PP layer, evidence of improved wetting.

To mimic closed-loop recycling, pellets were re-extruded and re-moulded. Virgin PP loses 13 % of its strain-at-break, but the 5 % plasma-lignin blend keeps 98 %, outperforming even neat PP on retention. The authors attribute the robustness to lignin’s antioxidant action: phenoxy radicals terminate peroxide chains that would otherwise slice PP backbones during thermal re-work.

Because the GAT reactor is continuous and consumes only electricity and argon, the process scales more readily than wet-chemistry routes. The electricity cost is estimated below €0.02 per kilogram of lignin, and no effluent is produced. Project partner EcoCIRC Hub in Lombardy is already testing 50 kg h⁻¹ pilots feeding automotive and packaging prototypes that must endure multiple reheat cycles.

If adopted widely, the technique could channel millions of tonnes of pulp-mill waste into high-value plastics, cutting petro-feedstock demand and raising recycling yields without new chemical plants. The same plasma tornado could, in principle, compatibilize lignin with other polyolefins or even polyesters, opening a new, drier path to a circular bio-economy.
