Lignin learns to glow: Waste wood turned into high-SPF, light-clear sunscreen

More than 70 million tonnes of alkali lignin are incinerated each year as low-value boiler fuel, yet its natural phenolic network is an untapped shield against ultraviolet light. The obstacle is twofold: unmodified lignin gives sunscreens a muddy brown tone and reaches a sun-protection factor (SPF) of only 4–8, far below the 30-plus consumers demand. Conventional bleaching or sulphonation lightens the colour but destroys UV-absorbing groups, while simply mixing lignin with synthetic filters often triggers aggregation that lets rays slip through.

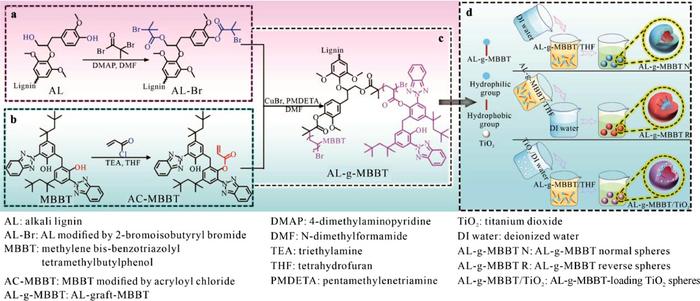

The new work keeps lignin’s antioxidant skeleton intact and instead stitches on methylene bis-benzotriazolyl tetramethylbutylphenol (MBBT), a benzotriazole already approved for cosmetics. 2-bromoisobutyryl-modified lignin acts as a macro-initiator for atom-transfer radical polymerisation, growing short MBBT side chains that extend the π-conjugation path without darkening the core. GPC shows molecular weight rises from 3,300 to 9,200 g mol⁻¹ while colour difference (ΔE) drops from 49 to 39, giving a beige rather than chocolate hue.

Next, the graft copolymer is shaped into uniform spheres by a solvent-shift method. Adding water to a tetrahydrofuran solution precipitates 496 nm "normal" particles (N), whereas reversing the addition yields 295 nm "reverse" spheres (R) with a hydrophobic surface. When rutile TiO₂ is dispersed in the aqueous phase before precipitation, 458 nm hybrid spheres form in which TiO₂ anchors to hydrophilic graft segments via hydrogen bonds, confirmed by X-ray photoelectron spectroscopy and energy-dispersive mapping. Thermogravimetry quantifies TiO₂ loading at 13 %, just enough to plug UVA windows without whitening skin.

Sunscreen prototypes are created by dispersing 10 % active solid in an off-the-shelf facial cream. Transmittance curves show unmodified lignin cream allows 30 % of UVB-UVA light to reach the detector; grafted lignin cuts that to 10 %; the TiO₂-loaded spheres trim it below 4 %. Calculated SPF scales linearly: 4.7 for plain lignin, 43 for the graft polymer, 60 for normal spheres and 66 for the TiO₂ hybrid—rivalling commercial broad-spectrum filters while using one-quarter the synthetic content. After three hours under a 365 nm lamp, SPF drifts less than 3 % and colour darkens by only 5 ΔE units, beating petro-based filters that typically yellow twice as fast.

HaCaT keratinocyte assays reveal cell viability above 80 % at 10 mg mL⁻¹, matching controls made with pharmaceutical TiO₂ or MBBT alone, and far exceeding copper-based UV blockers that drop below 50 %. Because lignin is already food-contact approved and MBBT is cleared world-wide, regulatory hurdles are expected to be lower than for entirely new molecules. The spheres disperse readily in both oil-in-water and water-in-oil emulsions, letting formulators drop them into existing lotion lines without surfactant overhauls.

Life-cycle numbers look equally sunny. Replacing 4 % of petro-chemical filters in a 200 t yr⁻¹ plant would divert 8 t of pulp lignin from boilers, cutting roughly 24 t of CO₂ equivalent. Atom-transfer polymerisation runs at 80 °C and ambient pressure, and solvent recovery exceeds 95 %, so energy demand stays below conventional phenolation routes. The team is now testing spray-dried powders that can be cold-blended into mineral make-up, and exploring acrylated ferulic acid as an even lighter chromophore.

If adoption mirrors lab curiosity, yesterday’s brown waste could become tomorrow’s clear coat—proof that the path to greener cosmetics may start in the paper mill rather than the oil refinery.
