Advanced iron-biochar composite boosts toxic chromium removal by 56-fold

The Persistent Problem of Chromium Pollution

Hexavalent chromium, or CrVI, is a highly toxic and mobile pollutant frequently found in water sources due to industrial activities like metallurgy and leather tanning. A common remediation technique uses microscale zerovalent iron mZVI to reduce the toxic CrVI to the far less harmful CrIII. However, this method is often inefficient because the iron particles quickly form a passive oxide layer on their surface, which blocks the chemical reaction and halts the cleanup process. Overcoming this passivation issue is a major goal in environmental remediation science.

A Novel Composite Material for Water Treatment

A team of scientists led by researchers at Nankai University has developed a potent new composite material that substantially improves CrVI removal. The material, called S-mZVI/SGB, combines iron particles with sulfur and a special graphene-like biochar derived from seaweed. The components are fused together through a mechanochemical synthesis process, an environmentally friendly ball-milling technique that avoids harsh chemicals. This method creates a synergistic composite where each component plays a specific role in detoxifying chromium-contaminated water.

Exceptional Performance in Removing Contaminants

In laboratory tests, the S-mZVI/SGB composite demonstrated a remarkable capacity for cleaning water. It was able to remove 70.2 milligrams of CrVI per gram of material at a near-neutral pH, a performance 56 times greater than that of unmodified zerovalent iron. The composite worked quickly, reaching equilibrium in under three hours, and effectively removed over 99% of the chromium from the test solution. The material's effectiveness at a pH common in natural water systems suggests its potential for use in real-world scenarios, such as groundwater treatment.

The 'Capture-Reduction' Mechanism at Work

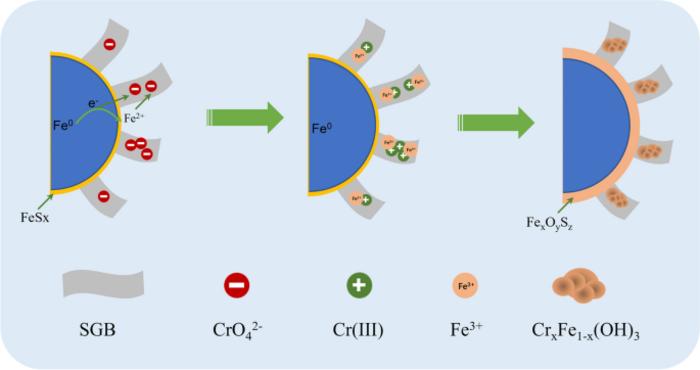

The success of the new material lies in its unique "capture-reduction" mechanism. The team, including lead authors Yue Wang and Zhenglong Liu, found that the sulfur-doped graphene-like biochar SGB component acts as a docking station, first capturing CrVI ions from the water. Once the ions are captured, the zerovalent iron core provides electrons that travel to the SGB nanosheets, where they reduce the toxic CrVI to the benign CrIII state. This indirect reaction pathway prevents the iron core from forming the passivation layer that plagues other ZVI-based treatments.

Evidence from Advanced Analysis

The researchers used multiple analytical techniques to confirm how the composite functions. Density-theory-functional DFT calculations showed that adding sulfur to the biochar significantly enhanced its ability to adsorb CrVI ions. X-ray photoelectron spectroscopy XPS confirmed that after treatment, nearly all chromium on the composite's surface was in the harmless CrIII form. Furthermore, electrochemical tests demonstrated that the S-mZVI/SGB composite had far lower charge transfer and diffusion resistance than other materials, verifying its superior ability to facilitate the necessary electron-transfer reactions.

A Promising Future for Environmental Remediation

The S-mZVI/SGB composite offers several practical benefits. It is synthesized from low-cost, readily available materials—iron, sulfur, and seaweed biochar. The composite is also magnetic, allowing it to be easily collected from water with a magnet for reuse. In experiments, the material maintained its high removal efficiency for at least four consecutive cycles. Even when tested in natural lake water containing other organic matter and ions, the composite performed well. These characteristics make it a very promising green material for addressing CrVI contamination in a cost-effective and sustainable manner. The research was a collaborative effort involving Wenli Huang, Jinfeng Lu, Shuangjiang Luo from the Institute of Process Engineering, Chinese Academy of Sciences, Bożena Czech from Maria Curie-Sklodowska University in Lublin, and senior authors Tielong Li and Haitao Wang of Nankai University.

Corresponding Author:

Tielong Li or Haitao Wang

Original Source:

https://doi.org/10.1007/s44246-023-00044-6

Contributions:

Yue Wang: Data curation, Writing- Original draft preparation. Zhenglong Liu: Data curation. Wenli Huang: Writing- Reviewing and Editing. Jinfeng Lu: Writing- Reviewing and Editing. Shuangjiang Luo: Writing- Reviewing and Editing. Bożena Czech: Writing- Reviewing and Editing. Tielong Li: Supervision, Writing- Reviewing and Editing. Haitao Wang: Conceptualization, Supervision, Writing- Original draft preparation, Writing- Reviewing and Editing. All authors have read and approved the final manuscript.
