From hazardous waste to high-value energy storage: a new life for nickel-contaminated biochar
A novel hydrothermal treatment transforms biochar used for wastewater cleanup into a powerful material for supercapacitors, revealing a surprising role for nickel in boosting stability and performance

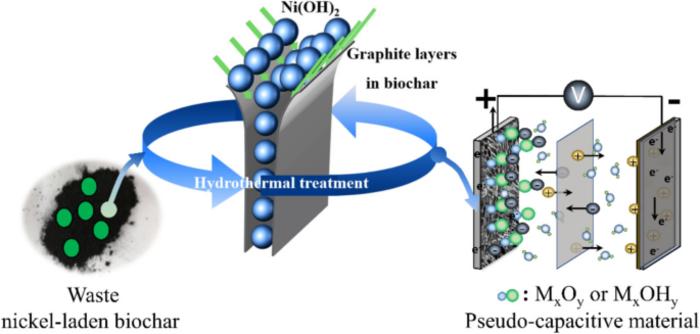

image: Recycling waste nickel-laden biochar to pseudo-capacitive material by hydrothermal treatment: roles of nickel-carbon interaction
Credit: Deping Li, Jing Ma, Huacheng Xu, Xiaoyun Xu, Hao Qiu, Xinde Cao, Ling Zhao
The Challenge of Contaminated Biochar
Biochar, a charcoal-like material produced from plant matter, is a powerful tool for environmental cleanup. Its porous structure makes it an excellent adsorbent for removing toxic heavy metals like nickel from industrial wastewater. However, this process creates a new problem: what to do with the metal-laden, hazardous biochar? A new study published in Carbon Research offers an innovative solution, transforming this waste into a valuable component for energy storage devices.
A Circular Solution: Waste to Watts
Researchers have developed a one-step hydrothermal method to upcycle waste biochar contaminated with nickel into a high-performance pseudo-capacitive material. This material is a key component in supercapacitors, which are energy storage devices that can charge and discharge much faster than batteries. By treating the nickel-laden biochar (originally made from peanut shells) with hot, pressurized water, the team successfully created a material with excellent electrochemical properties, paving the way for a circular economy approach to waste management.
Low Temperature, High Performance
The study explored how different temperatures (from 90°C to 180°C) and nickel concentrations affected the final material's performance. Surprisingly, the best results were achieved at the lowest temperature. The material produced at 90°C, with a high nickel content, exhibited the highest pseudo-capacitance of 386.7 Farads per gram (F g⁻¹). This high capacitance is attributed to the formation of delicate, flower-like nickel hydroxide (Ni(OH)₂) crystals that dispersed evenly across the biochar surface, maximizing the area available for electrochemical reactions.
The Critical Role of Nickel-Carbon Interaction
A key discovery of the research was the intricate interaction between the nickel and the carbon structure of the biochar. Higher temperatures (180°C) led to the formation of thicker, lamellar Ni(OH)₂ crystals. While these provided slightly better long-term stability, they resulted in lower overall capacitance. The study revealed that at lower temperatures, the finer, flower-like crystals offer a superior balance of performance and stability for energy storage applications.
Nickel's Unexpected Structural Role
Beyond forming the active capacitive material, nickel was found to play a crucial role in modifying the biochar itself. Advanced analyses, including X-ray diffraction and thermogravimetry, showed that nickel atoms actually insert themselves into the graphite layers of the biochar. This insertion process expands the distance between the graphite layers and acts as a stabilizing reinforcement. This unique nickel-carbon cross-linking enhances the thermal and electrochemical stability of the entire composite material.
Paving the Way for Greener Electronics
This research provides a dual environmental benefit: it offers a safe and valuable recycling pathway for hazardous industrial waste while simultaneously producing high-performance materials for green energy technologies. The process demonstrates that the interaction between a contaminant (nickel) and a sorbent (biochar) can be leveraged to create a new material with enhanced properties that neither component possesses alone. This strategy effectively turns a disposal problem into a resource creation opportunity.
Future Outlook
The findings present a promising strategy for reclaiming metal-contaminated biochar and maximizing the potential of both the metal and carbon components. Future work will focus on scaling up the process, fabricating full supercapacitor devices from these materials, and conducting a thorough cost-benefit analysis to assess the economic viability of this waste-to-value approach. This study opens a new door for designing stable, high-performance, and sustainable energy storage materials from otherwise problematic waste streams.
Corresponding Author:
Ling Zhao
Original Source:
https://doi.org/10.1007/s44246-022-00015-3
Contributions:
Deping Li: Methodology, Validation, Formal analysis, Investigation, Resources, Writing - Original Draft, Writing - Review & Editing. Jing Ma: Formal analysis, Writing - Review & Editing. Huacheng Xu: Resources, Writing - Review & Editing. Xiaoyun Xu: Resources, Supervision. Hao Qiu: Resources, Supervision. Xinde Cao: Conceptualization, Writing - Review & Editing, Supervision. Ling Zhao*: Conceptualization, Formal analysis, Writing - Review & Editing, Supervision, Project administration. The author(s) read and approved the final manuscript.
