A breath of fresh air: Novel nanotube-based catalyst completely eliminates a common air pollutant
By growing manganese dioxide directly onto carbon nanotubes, scientists created a durable catalyst that purifies air with unprecedented efficiency at low temperatures

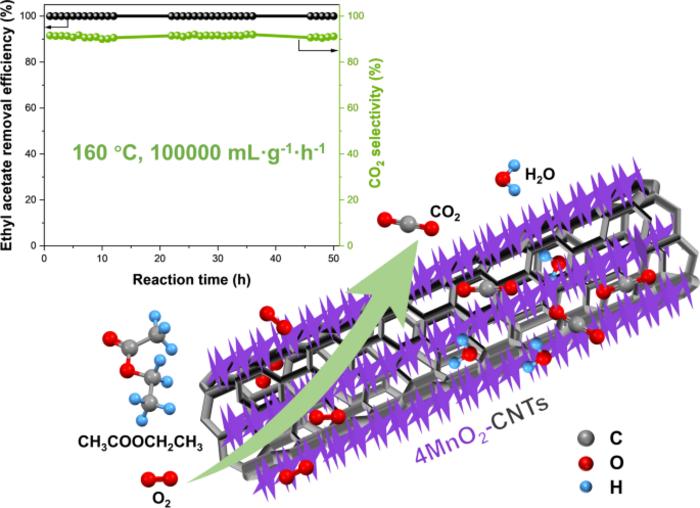

image: Birnessite MnO₂ supported on CNTs in-situ for low-temperature oxidation of ethyl acetate
Credit: Yongjian Zeng, Xixian Yang, Hao Yu
Industrial processes often release volatile organic compounds (VOCs) into the atmosphere, posing significant risks to human health and the environment. Ethyl acetate, a common VOC used in paints, printing, and pharmaceuticals, contributes to the formation of smog and can cause health issues ranging from dizziness to cancer. Developing effective and energy-efficient methods to remove these pollutants is a critical environmental challenge. Traditional methods often require high temperatures, making them costly and energy-intensive.
In a new study published in Carbon Research, scientists have developed a novel catalyst capable of eliminating ethyl acetate with remarkable efficiency at low temperatures. The team created a composite material by growing birnessite manganese dioxide (MnO₂) directly onto the surface of carbon nanotubes (CNTs). This approach creates a powerful and stable catalyst for breaking down harmful VOCs into harmless carbon dioxide and water.
A Superior Synthesis
The key to the catalyst's success lies in its unique preparation. Researchers used an in-situ synthesis method, where a redox reaction between potassium permanganate (KMnO4) and the carbon nanotubes themselves resulted in the formation of MnO₂ nanosheets intimately anchored to the CNT support. This process maximizes the interaction between the active catalytic component (MnO₂) and its robust, highly conductive support (CNTs), which is crucial for enhancing catalytic activity and stability. By varying the amount of KMnO4, the team was able to precisely control the loading of MnO₂ on the nanotubes to find the optimal composition.
Unprecedented Performance
The results were striking. The team's optimal catalyst, designated 4MnO₂-CNTs, demonstrated outstanding performance for the catalytic oxidation of ethyl acetate. At a relatively low temperature of 160 °C, it achieved a 100% removal efficiency, completely converting the pollutant. Furthermore, it showed a 99% selectivity for CO₂, indicating that the ethyl acetate was fully mineralized into non-toxic byproducts. This high level of performance was achieved even at a high gas hourly space velocity of 100,000 mL·g−1·h−1, showcasing its potential for rapid, large-scale industrial applications.
Built to Last
For any catalyst to be commercially viable, it must not only be effective but also durable. The 4MnO₂-CNTs catalyst excelled in this regard, exhibiting excellent stability over a 50-hour continuous test period. It maintained its 100% removal efficiency without any noticeable degradation in performance. The researchers attribute this high stability to the strong interaction between the MnO₂ and the intact structure of the carbon nanotube support, which prevents the active material from deactivating or detaching over time.
The Secret to Success
Through comprehensive characterization, the scientists pinpointed why their catalyst was so effective. The 4MnO₂-CNTs material possessed a higher concentration of active sites, specifically Mn3+ ions and surface-adsorbed hydroxyl oxygen, which are critical for the oxidation reaction. The unique tubular structure of the CNTs provided an ideal scaffold, ensuring high dispersion of the MnO₂ particles and preventing them from clumping together. When compared to a similar catalyst made with a conventional activated carbon support, the CNT-based version was significantly superior, underscoring the vital role of the advanced nanomaterial support.
This work provides a powerful and feasible strategy for designing the next generation of highly active, low-cost, and durable catalysts for air purification. The principles demonstrated in this study could be applied to develop new materials for removing a wide range of other harmful VOCs, paving the way for cleaner air and more sustainable industrial practices.
Corresponding Author:
Xixian Yang, Hao Yu
Original Source:
https://doi.org/10.1007/s44246-022-00024-2
Contributions:
Conceptualization, Xixian Yang and Hao Yu; Funding acquisition, Xixian Yang; Investigation, Yongjian Zeng; Supervision, Hao Yu; Writing original draft, Yongjian Zeng; Review and editing, Xixian Yang and Hao Yu. All authors have read and agreed to the published version of the manuscript.
