New numerical model could improve real-world management of liquid metal batteries

Researchers have developed a comprehensive numerical model for liquid metal batteries that captures potential, mass transfer, and species distribution while remaining fast enough to support practical battery management. The work could help bring greater precision to how these emerging batteries are monitored, controlled, and optimized, especially in long-duration energy storage applications where both safety and lifespan are critical.

Liquid metal batteries have attracted growing attention as a candidate technology for grid-scale storage because they offer several advantages that are difficult to combine in conventional battery systems. They are known for high safety, scalability, and the potential for very long service life, features that make them attractive for stabilizing electricity systems increasingly supplied by renewable energy. But to use such batteries efficiently over long operating periods, engineers need models that can predict internal behavior accurately enough for real-time management. That remains a major challenge because the electrochemical processes inside liquid metal batteries involve coupled transport, reaction, and potential-distribution phenomena that are not easy to describe without either oversimplifying the physics or relying on computationally heavy simulation tools.

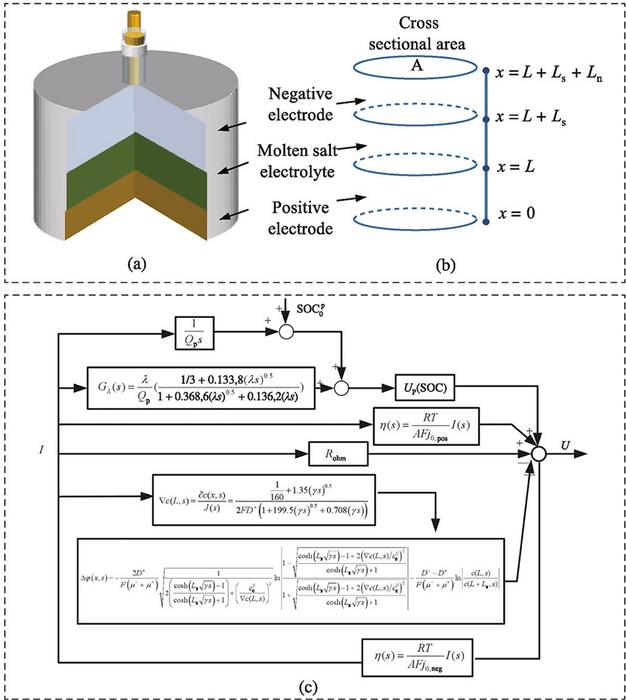

The authors of the new study set out to close that gap by constructing a model that combines the key internal processes of liquid metal batteries in a single practical framework. Their approach incorporates electrical potential, mass transfer, and species distribution, allowing the battery's electrochemical behavior to be analyzed in a more physically grounded way. At the same time, the team aimed to avoid the complexity that often prevents such models from being used outside specialized finite-element environments. To achieve that balance, they introduced a simplification strategy based on the Pade approximation method, which reduces the computational burden while preserving the model's ability to represent the underlying electrochemical dynamics.

That balance between detail and efficiency is central to the value of the work. Many existing methods either rely on equivalent circuit models that are computationally efficient but limited in their physical interpretability, or on high-fidelity models that are more realistic but too cumbersome for routine operational use. The researchers argue that a useful model for liquid metal batteries should not force a tradeoff between these two goals. Instead, it should be accurate enough to describe how materials and charge behave inside the cell, yet efficient enough to support rapid calculation under practical operating conditions. Their framework was specifically designed around that need.

According to the article, the model was validated experimentally under different temperatures, current levels, and dynamic working conditions. That matters because battery models often perform well only within a narrow operating window, while real energy-storage systems must respond to changing loads and environments. The reported results suggest that the proposed approach remains robust across varied conditions. Compared with a conventional equivalent circuit model, the new model achieved a 38.2% reduction in root mean square error. In practical terms, that means the framework can reproduce battery behavior more accurately, improving confidence in predictions of internal state and system response.

The model's broader significance lies in what it enables beyond simple voltage fitting. Because it incorporates thermodynamic and kinetic parameters together with species-transfer behavior, it provides a more comprehensive way to analyze the electrochemical processes occurring inside liquid metal batteries. That can be important for battery management systems, which depend on reliable internal-state information to regulate operation, reduce stress, and maintain performance over time. A better model could also help with parameter identification, fault diagnosis, and the design of more effective control strategies. In long-cycle storage technologies, where performance and lifetime are deeply tied to how well internal processes are understood, that kind of modeling capability can be especially valuable.

The paper also has implications for how liquid metal battery research may develop going forward. By providing a framework that is both physically meaningful and computationally practical, the model could serve as a bridge between laboratory-scale electrochemical understanding and real-world system-level management. Rather than treating the battery as a black box, the approach opens the possibility of tracking internal transport and reaction behavior more directly. That could be useful not only for present-day operation, but also for future work on aging analysis, state-of-health estimation, and lifespan prediction, areas where physically informed models are often needed to move beyond empirical approximation.

As with any model, further work will still be needed to test how broadly the framework generalizes across battery chemistries, designs, and long-term degradation states. Even so, the new study offers a strong indication that liquid metal batteries can be modeled in a way that respects their internal complexity without sacrificing practical usability. For a technology often discussed in terms of its promise for large-scale renewable integration, that is an important step. Better modeling may not be as visible as a new electrode material or a record-setting performance test, but it can be just as essential in turning an emerging storage concept into a system that can be managed reliably in the field.

Reference

Author:

Qionglin Shi ^a, Junyi Xia ^a, Hao Zhou ^b, Huanlun Du ^a, Zhuohao Li ^a, Cheng Xu ^a, RuoChen Zhang ^a, Lei Fan ^c, Bo Li ^c, Haomiao Li ^a, Min Zhou ^a, Wei Wang ^b, Shijie Cheng ^a, Kangli Wang ^a, Kai Jiang ^a

Title of original paper:

A comprehensive numerical model incorporating potential, mass transfer, and species distribution in liquid metal batteries

Article link:

https://www.sciencedirect.com/science/article/pii/S2773153725001033

Journal:

Green Energy and Intelligent Transportation

DOI:

10.1016/j.geits.2025.100353

Affiliations:

^a State Key Laboratory of Advanced Electromagnetic Technology, School of Electrical and Electronic Engineering, Huazhong University of Science and Technology, Wuhan 430074, China

^b School of Materials Science and Engineering (Huazhong University of Science and Technology), Wuhan 430074, China

^c Institute of Electric Power Science of Guizhou Power Grid Co., Ltd., Guizhou, Guiyang 550000, China
