Electricity traps liquid metal to spin free-standing 3D circuits in midair

Modern electronics are running out of physical room. To shrink medical implants and wearable sensors further, engineers must wire them vertically in three dimensions rather than laying circuits flat. Low-melting-point alloys like Field’s metal offer an immediate solution because they conduct electricity at room temperature without requiring extreme baking. Yet shaping liquid metal is notoriously difficult.

In the International Journal of Extreme Manufacturing, Prof. Xiaoyang Zhu at Qingdao University of Technology and his co-workers have developed a technique that uses electric fields to anchor and stretch liquid metal, allowing it to freeze in mid-air to form unsupported 3D circuits.

The difficulty stems from a conflict of fluid physics and thermal dynamics. Molten metal behaves much like water on a freshly waxed car, curling into stubborn beads due to high surface tension and a rigid oxide skin. When traditional 3D printers attempt to draw these droplets upward, the weak liquid anchor snaps off the surface. If operators shrink the nozzle to print finer lines, the metal quickly loses heat to the cold surface below and freezes solid inside the tip, clogging the machine.

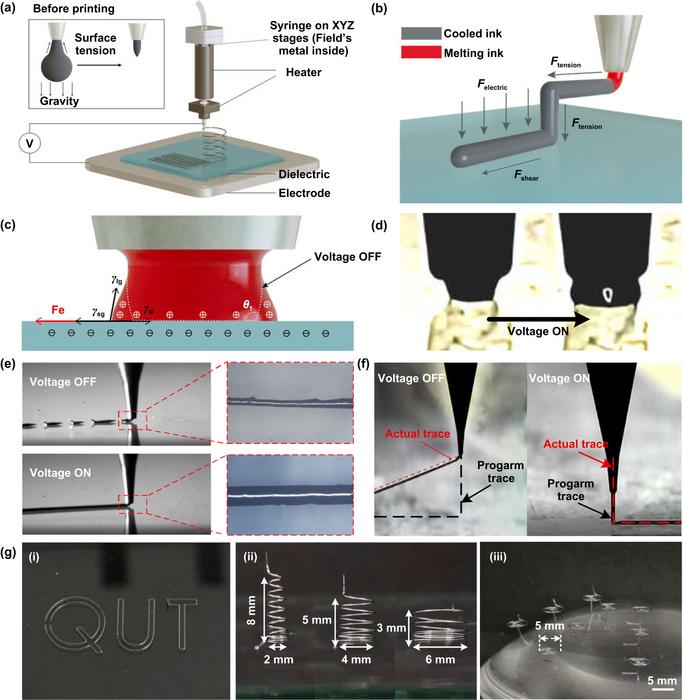

The new system bypasses this conflict by pairing mechanical pulling with static electricity, leveraging the synergistic effect of electrowetting and tension. Instead of just pushing the metal out, the printer applies a localized voltage where the nozzle meets the surface. This voltage acts as an electrostatic clamp. It forces electrical charges to the bottom of the droplet, instantly flattening it and pinning it firmly against the surface.

With the base securely locked down, the nozzle lifts away. As it rises, it draws out a microscopic liquid thread that cools and hardens in the air. By holding the metal exactly at 110 °C - its most fluid state - and mounting the nozzle on a tilting five-axis robotic arm, the system prevents the freshly spun wire from freezing prematurely or snapping against the metal tip during sharp turns.

The speed and precision of this method leap past existing manufacturing boundaries. The platform spins continuous metal threads at speeds exceeding 100 mm per second, which is nearly a hundred times faster than standard extrusion methods. It can narrow these conductive lines down to 20 μm across, roughly one‑fourth the thickness of a human hair. Once formed, the resulting free‑standing 3D structures survived severe vibration tests up to 0.5 g of acceleration and endured repeated thermal cycling from 20 °C to 65 °C without cracking, warping, or losing electrical continuity.

For the manufacturing industry, this approach eliminates the need for the toxic chemical baths, costly lasers, and high‑energy sintering ovens traditionally used to etch microchips. It provides a direct method to print wireless charging coils, vertical wiring, and flexible sensor networks straight onto complex or soft materials, including curved glass domes, flexible plastic films, and rubber membranes.

Transitioning this laboratory platform to commercial electronics production requires refining the electrical charge models to work on ultra‑thick insulating materials. Engineers also need to automate the robotic toolpaths to handle highly irregular industrial shapes and develop protective polymer coatings to shield the delicate 3D metal structures from daily physical wear.
