Laser-carved artificial skin feels everything from a falling feather to a heavy-duty truck tire

A human hand can delicately cradle a fragile robin's egg without cracking it, then instantly pivot to grip a heavy wrench with total control. Replicating that dynamic span in robotics and medical hardware has long run up against a stubborn engineering hurdle: touch sensors sensitive enough to read a faint heartbeat typically max out under the slightest squeeze, while durable pads built for heavy loads are numb to gentle contact.

In International Journal of Extreme Manufacturing, Prof. Daozhi Shen at Shanghai Jiao Tong University and his co-workers have resolved this conflict by firing ultrafast laser bursts at titanium foil, carving dual-scale microscopic textures in a single manufacturing step to create an artificial skin that handles both extremes.

The secret behind artificial touch often relies on iontronic sensing, where a soft and ion-rich gel is pressed against a metal electrode to store an electrical charge. When pushed together, ions in the gel and electrons in the metal crowd toward each other at the surface, forming an electrical layer that acts like a microscopic capacitor. The tighter the squeeze, the more surface area they share, causing an electrical signal to spike.

Conventional designs use micrometer-scale pyramid shapes to absorb incoming pressure. While these pyramids flex easily under light contact, moderate forces quickly squash the gel completely flat against them, causing the readout to hit a hard ceiling. To keep the signal climbing under heavier loads, engineers needed a secondary blanket of nanoscale bumps resting on top of each pyramid. Historically, stacking these two different size scales required costly multi-stage cleanroom lithography or temperamental chemical molds that resist high-volume manufacturing.

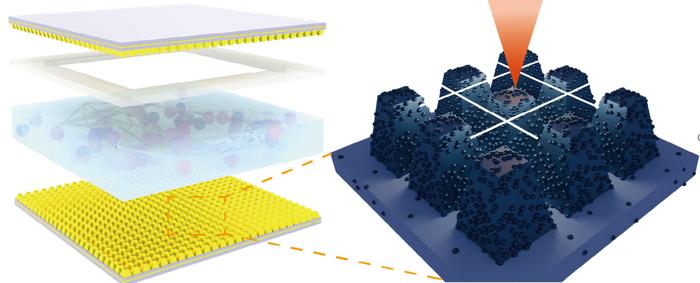

Prof. Shen's team bypassed those cleanroom steps by turning to the violent physics of femtosecond laser ablation. As concentrated pulses of light strike a strip of titanium foil, the laser vaporizes neat micro-trenches to leave behind rows of microscopic pyramids. At the exact same moment, the energy blast throws up an incandescent plume of vaporized metal plasma. As this plume cools in fractions of a second, it rains microscopic metal droplets back down onto the foil, cementing an anchored blanket of nanoscale clusters directly across the pyramid faces.

The resulting surface functions like a mountain range dusted with gravel. Under the lightest touch, the gel makes immediate electrical contact with the elevated tips of the nanoclusters, registering an instant signal. When heavy forces bear down, the soft gel deforms progressively down the pyramid slopes, settling into the dense nanoscale crevices rather than flattening out all at once.

This layered contact allows the sensor to detect pressures as low as 3.4 Pa, less than the weight of a tiny paper scrap resting on a fingertip, while continuing to track loads up to 800 kPa, a heavy compression equivalent to four times the air pressure inside a standard car tire. The device logs a response time of 30 milliseconds, beating the roughly 40-millisecond tactile reflex of human skin, and survives 10,000 continuous compression cycles with negligible signal drift.

To prove the system in real-world conditions, the researchers built a wearable musical glove with sensors fitted to each fingertip. By distinguishing light taps from firm presses, the glove translated finger motions into 21 distinct musical notes across three full octaves with 99.1% accuracy, while also tracking weight shifts underfoot during human gait trials.

Because the process replaces multi-step cleanroom etching with direct and mask-free laser carving, it offers a scalable path to stamping sensory skins onto commercial assembly lines. Moving these devices into factory robotics and clinical patient monitors will now require robust protective barriers to shield the inner electrolyte gel from humidity shifts and mechanical wear during everyday use.
