Laser 3D-printing teaches solid metal how to deform

Metals that physically flex and shift shape in response to magnetic fields are the hidden muscle behind the world's advanced robotic actuators, deep-sea sonar transducers, and precision micro-positioners. However, deploying these iron-gallium alloys into next-generation technology has stalled against a rigid manufacturing compromise between geometric complexity and magnetic performance.

In the International Journal of Extreme Manufacturing, Prof. Chengde Gao at Central South University and his co-workers have shattered this thermal and structural bottleneck by laser 3D-printing, successfully weaving metal powders into intricate and highly responsive magnetic devices.

Traditionally, methods like casting or directional solidification have been used to align the internal crystals of iron-gallium alloys for impressive magnetic response, but restrict the final components to simple bulk rods or flat sheets. Attempting to manufacture intricate actuator shapes using laser powder bed fusion introduces severe thermal bottlenecks. The intense localized heat and rapid cooling cycles warp the metal, spawn micro-cracks, and scramble the internal crystal alignment, creating structural defects that physically pin magnetic domains in place and ruin the alloy’s ability to change shape.

To bypass this failure, Prof. Gao’s team altered the path of the 3D printer's laser. By rotating the laser’s scanning direction exactly 90° with every successive layer of metal powder, the researchers created a more uniform temperature distribution across the melting pool.

This orthogonal scanning strategy triggers a crystal self-alignment mechanism. To maintain structural stability under the alternating thermal gradients, the microscopic metal cells are forced to grow in a highly ordered, repeating cubic grid. The process works much like laying a brick wall, where the alternating heat forces every new microscopic crystal to snap into perfect alignment with the layer below it to maintain a stable foundation.

This physical reorganization drastically improves the alloy's structural integrity. Three-dimensional computed tomography shows this orthogonal weaving drops the volume of internal voids from 2.29% to a near-solid 0.29%, while X-ray analysis confirms trapped residual stresses fall nearly fivefold, from 319 down to 66 MPa.

Because this highly aligned crystal structure allows magnetic domains to rotate more coherently, the alloy’s magnetostrictive strain jumps 55.3% compared to metals printed without laser rotation.

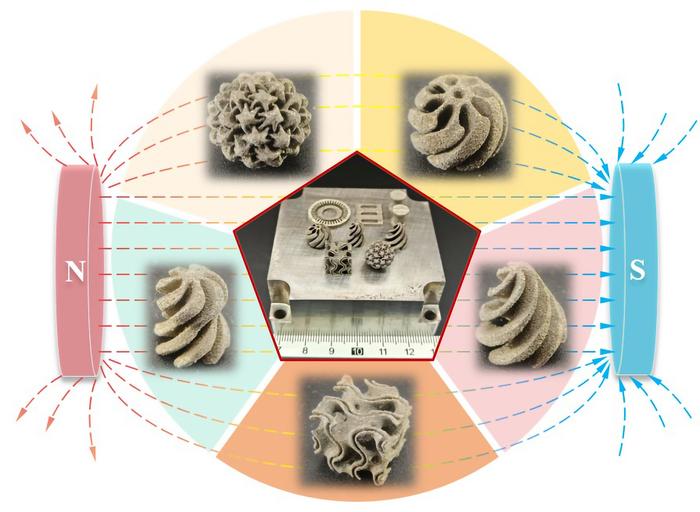

This development opens up new possibilities for the manufacturing community in the processing of smart devices. Engineers can now print fully functional and complex geometries like hollowed gyroid cubes and spiral cones straight from the powder bed. Further work will focus on scaling this laser scanning strategy to larger-format printers and evaluating the performance of these printed components under service conditions relevant to aerospace and deep-sea applications.
