High-spin cobalt unlocks a new era of long-life zinc–manganese batteries

As demand grows for safe, affordable, and high-performance energy storage, aqueous zinc batteries have emerged as promising alternatives to conventional lithium-ion systems. However, manganese dioxide cathodes often suffer from structural distortion, sluggish reaction kinetics, and the accumulation of electrochemically inactive manganese dioxide, leading to rapid capacity decay. Researchers from Beijing University of Chemical Technology, the National University of Singapore, the Chinese Academy of Sciences, and City University of Hong Kong have developed an atomic-level spin-state regulation strategy that overcomes these limitations. By embedding isolated high-spin cobalt atoms into layered manganese dioxide, the team activates reversible multi-electron storage chemistry, achieving exceptional capacity and ultralong cycling stability without requiring additional acid or redox mediators.

Why This Zinc-Battery Cathode Matters

Manganese dioxide is an attractive cathode material because of its high theoretical capacity, but conventional electrodes face a fundamental challenge: manganese-related reactions are often insufficiently reversible. Structural distortion associated with Mn³⁺ can destabilize the cathode, while deposited MnO₂ may fail to dissolve completely during discharge, creating inactive deposits that increase interfacial resistance and accelerate capacity loss. Existing approaches involving acidic electrolytes or redox mediators can introduce additional corrosion, self-discharge, and stability concerns. Developing a cathode that simultaneously stabilizes the host structure and promotes reversible manganese deposition and dissolution is therefore essential for durable, high-capacity aqueous zinc batteries.

Innovative Design and Mechanism

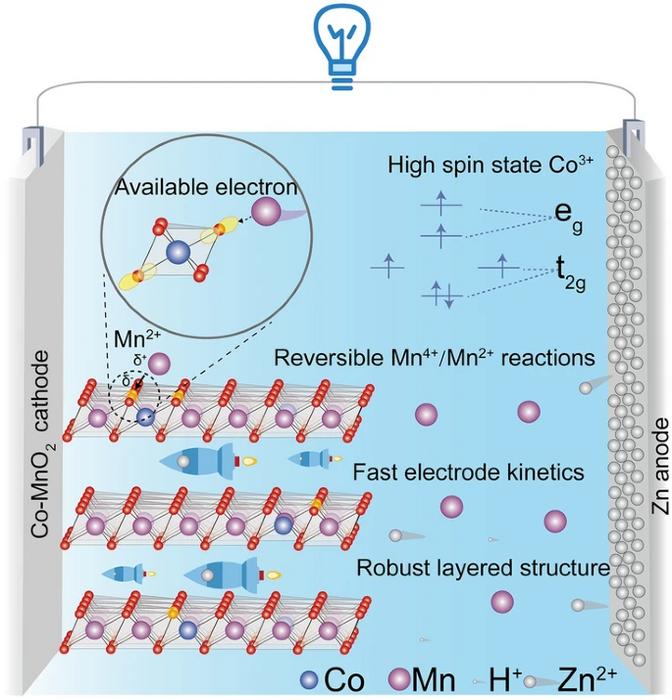

The researchers fabricated a Co–MnO₂ nanoarray through the in situ electrochemical oxidation of a cobalt–manganese layered double hydroxide precursor. This topological phase transformation uniformly incorporates atomically dispersed high-spin Co³⁺ into the layered MnO₂ framework. The high-spin electronic configuration modifies the local symmetry of [MnO₆] octahedra, suppressing Jahn–Teller distortion and improving structural stability. Meanwhile, weaker Co–O bond covalency increases electron availability around lattice oxygen, facilitating Mn²⁺ adsorption and electron transfer at the cathode interface. These changes activate two complementary storage processes: bulk MnO₂/Mn³⁺ redox reactions and interfacial MnO₂/Mn²⁺ deposition–dissolution. Crucially, the strategy promotes the reversible removal of deposited MnO₂ without adding acid or external redox mediators.

Outstanding Performance

The optimized Co–MnO₂ cathode delivers a remarkable reversible capacity of 658 mAh g^-1 at 0.2 A g^-1. It retains approximately 100 mAh g^-1 after 15,000 cycles at 5 A g^-1, with a reported capacity decay of only 0.0014% per cycle. At 2 A g^-1, the electrode maintains 185 mAh g^-1 after 3,000 cycles. It also demonstrates strong rate capability, delivering 280 mAh g^-1 at 2 A g^-1, while recovering 516 mAh g^-1 when the current returns to 0.2 A g^-1. By comparison, the unmodified MnO₂ cathode undergoes rapid capacity deterioration. The Co–MnO₂ system also exhibits improved resistance to self-discharge, retaining 81.23% of its capacity after 24 hours, compared with 76.02% for pristine MnO₂.

Applications and Future Outlook

The practical potential of this strategy is further demonstrated by a zinc pouch cell containing a Co–MnO₂ cathode with a mass loading of 45 mg, which operates without observable capacity decay over 100 cycles. More broadly, the study establishes transition-metal spin-state regulation as a promising design principle for activating reversible multi-electron chemistry in manganese-based cathodes. By coordinating structural stabilization, faster charge transfer, and reversible interfacial reactions within one material, this approach offers a pathway toward aqueous zinc batteries combining high energy-storage capacity with long service life. Future research can explore how atomic spin-state engineering may be extended to other electrode materials and advanced energy-storage systems.
