A cold snap gives delicate bioprinted tissues backbone

The ambition to 3D-print spare human body parts routinely stumbles over a stubborn biological trade-off: cells flourish in dilute, water-heavy broths that mimic native extracellular matrix, yet light-based bioprinters typically demand thick slurries of reactive polymers to solidify cleanly.

When researchers attempt to print using tissue-friendly, watery formulations, the resulting scaffolds often slop into shapeless puddles or puff up into distorted masses. Coaxing such dilute mixtures to crosslink usually requires harsh, extended baths of high-energy light, which spit out caustic free radicals that injure the very cells scientists hope to cultivate.

In the International Journal of Extreme Manufacturing, Prof. Rui Liu, Prof. Wen Zeng at the Army Medical University in Chongqing and their co-workers has resolved this impasse with a deceptively simple fix: briefly chilling the ink into a temporary solid before exposing it to light.

The core issue stems from how dilute molecules behave in an open bath. Standard vat bioprinters project patterns of light into a liquid reservoir to weld polymer strands together. When the liquid holds only a trace amount of building blocks, those loose polymer chains drift too far apart to link up efficiently.

Because crosslinking takes too long, free radicals wander into unlit zones, blurring fine features while leaving the gel weak and prone to distortion. Past attempts to shore up these fragile inks relied on synthetic thickening agents, sacrificial fluid baths, or harsh digestive enzymes, yet each introduced toxic risks or manufacturing instability.

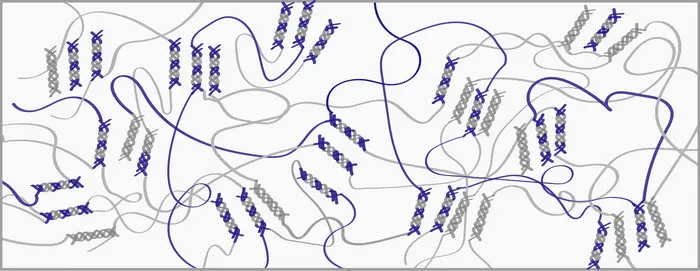

The researchers sidestepped his chemical deadlock by tapping into the natural physics of cooking gelatin. In their "solid-to-solid" system, a watery bioink containing light-sensitive gelatin is chilled to just 4°C, roughly the temperature of a kitchen refrigerator. Chilling acts like a temporary molecular zipper, pulling the loose polymer strands together into ordered triple-helix bundles without triggering any permanent chemical reactions.

Once these chains are physically corralled, a flash of 405 nm light permanently welds the crowded contact points into place. Warming the construct back to normal body temperature (37°C) unzips the dark, unexposed regions, allowing them to wash away cleanly and leaving behind only the illuminated, high-fidelity structure.

This physical pre-assembly fundamentally accelerates curing efficiency. By cutting down the physical distance between reactive ends, the process locks 93% of the polymer into the permanent matrix, compared with 82% in conventional liquid precursors.

By snapping into place so rapidly, the reaction consumes the harmful free radicals almost instantly, sparing the encapsulated cells from chemical stress. Instead of swelling uncontrollably, the final material undergoes a slight, controlled shrinkage that sharpens microscopic edges down to 50 μm .

Crucially, this molecular squeeze allows printers to work with gelatin concentrations as low as 1% to 2.5%, an ultralow threshold that liquefies and fails under conventional methods. Even when blended at a modest 5% concentration, the resulting hydrogel proves 50 times stiffer than its liquid-cured counterparts, easily supporting its own weight in open air without buckling. The gentle process also enabled the team to pack constructs with 100 million living cells per milliliter, reaching the dense cellular traffic found in natural tissue without losing print quality.

That looseness and water content paid off immediately in living models. When implanted beneath the skin of mice, the 2.5% gel triggered minimal immune pushback, allowing surrounding host tissue to grow right into the scaffold rather than sealing it off behind thick scar walls. Stem cells and vessel-forming cells printed inside the material organized into an intricate capillary network.

Within two weeks, these lab-grown human vessels plumbed directly into the host mouse circulatory system, carrying real red blood cells through their interiors. The researchers also tuned the formula for different clinical targets: a 5% recipe preserved its shape long enough to nurture living cartilage tissue, while the 2.5% recipe degraded in tandem with dental pulp stem cells to rebuild living pulp inside extracted tooth roots.

By showing that delicate, tissue-grade biomaterials do not require exotic chemical stabilizers or elaborate new printers but just precise temperature control on the print bed, this technology lowers the barrier to printing soft, biomimetic implants that previously lacked the mechanical strength to survive handling. The immediate focus now centers on optimizing layer-by-layer recoating speeds, which are currently slowed by the thermal cooling step, and evaluating the long-term biomechanical performance of larger, full-scale implants in dynamic, load-bearing animal injury models.
