News Release

Packing more juice in lithium-ion batteries through silicon anodes and polymeric coatings

Scientists investigate how a self-repairing polymer can vastly improve the durability of a promising anode material for high-capacity batteries

Peer-Reviewed Publication

Japan Advanced Institute of Science and Technology

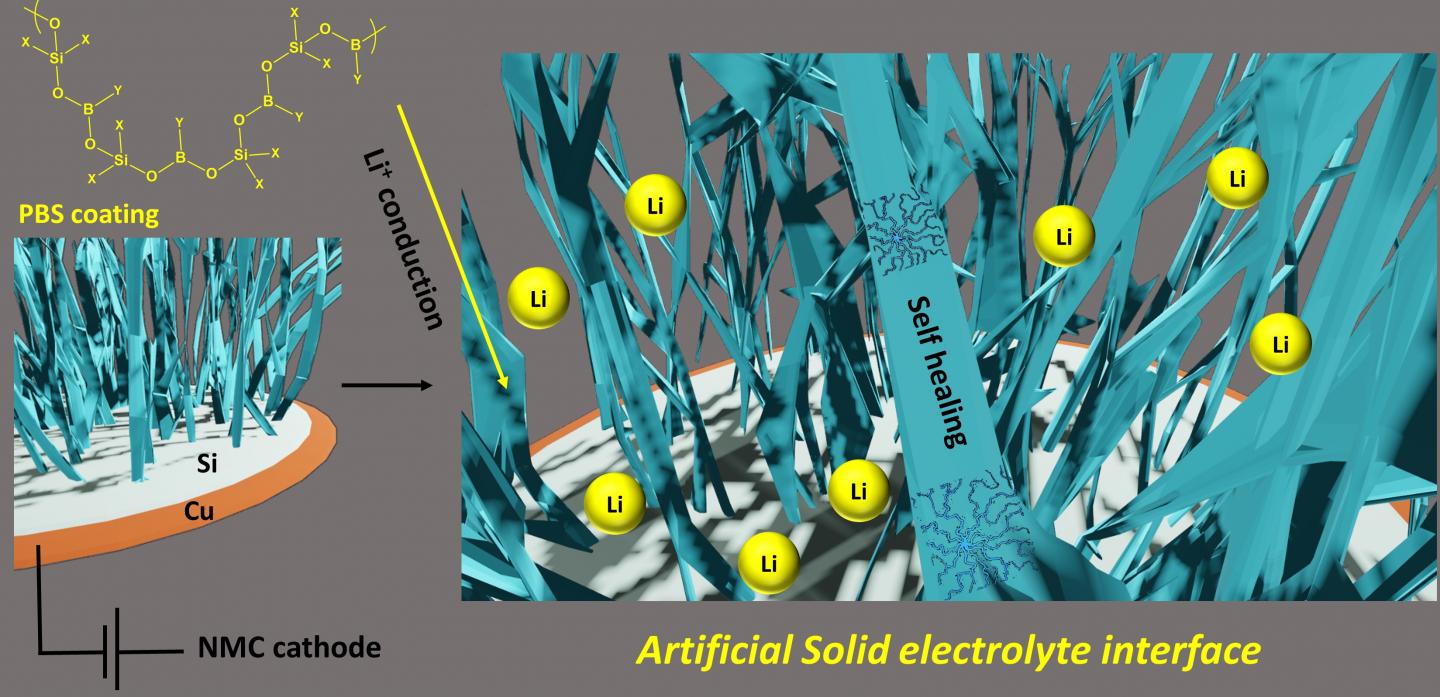

Figure 1. Poly(borosiloxane) as coating for silicon anodes

image: PBS serves as an artificial solid-electrolyte interface with good lithium ion conduction and self-healing abilities to automatically repair any cracks that form during operation. view more

Credit: Noriyoshi Matsumi from JAIST

Although silicon anodes could greatly boost the capacity of Li-ion batteries, their performance rapidly degrades with use. Polymeric coatings can help solve this problem, but very few studies have explored the underlying mechanisms. In a recent study, scientists from Japan Advanced Institute of Science and Technology investigate how a poly(borosiloxane) coating greatly stabilizes the capacity of silicon anodes, paving the way for better and more durable Li-ion batteries for electric cars and renewable energy harvesting.

Since their conception, lithium-ion batteries (LIBs) have been constantly improved and adapted so that they can become suitable for vastly different applications, from mobile devices and electric cars to storage units for renewable energy harvesters. In most larger-scale applications (such as the latter two), the focus of LIB research is placed on increasing their capacity and voltage limits without increasing their overall size. Of course, for that to be possible, the components and materials of the battery must be switched up.

Many researchers have placed their bets on the use of silicon anodes instead of the traditional graphite anodes. The anode is the part of the battery where lithium ions are stored when the battery is charged, which then flow through a medium called electrolyte to the cathode on the other end when the battery's charge is used. Although silicon is certainly a promising anode material that offers an almost tenfold capacity increase for LIBs, it brings with it a series of challenges that have to be overcome before silicone anodes can be commercialized.

In a recent study published in ACS Applied Energy Materials, a team of scientists from Japan Advanced Institute of Science and Technology (JAIST) tackled the problems of silicon anodes using a promising polymeric coating: poly(borosiloxane) (PBS). The study was led by Professor Noriyoshi Matsumi and also involved Dr. Sai Gourang Patnaik and Dr. Tejkiran Pindi Jayakumar, who were completing a doctoral course at JAIST at the time.

Polymeric coatings can solve one of the most serious drawbacks plaguing silicon anodes: the formation of an excessively large solid electrolyte interphase (SEI). The spontaneous formation of the SEI between the electrolyte and the anode is actually essential for the long-term performance of the battery. However, materials like silicon tend to expand greatly with use, which causes continuous SEI formation and the depletion of the available electrolyte. Needless to say, this hinders the performance of the battery and causes a massive drop in capacity over time.

This is where polymeric coatings come into play; they can prevent the excessive SEI formation on silicon and form an artificial and stable SEI (see Figure 1). Though researchers had already noted the potential of PBS as a coating for silicon anodes, previous studies did not offer clear explanations for the mechanisms at play, as Prof. Matsumi explains, "There are very few reports on well-defined PBS-based polymers that offer a mechanistic origin for their application and their effects. Thus, we wanted to evaluate and shed light on their contribution to silicon anodes as a self-healing artificial interface that also prevents detrimental volume expansion."

The team compared the short- and long-term performance of silicon anodes with and without polymeric coatings in terms of stability, capacity, and interfacial properties. They did this through a series of electrochemical measurements and theoretical calculations, which led them to understand how PBS helps stabilize the capacity of the silicon anode.

Compared to bare silicon anodes and anodes coated with poly(vinylidene fluoride) (a commercially used coating in LIBs), the self-healing properties of PBS and its reversible accommodation of lithium ions resulted in remarkably enhanced stability. This is partially due to the ability of PBS to fill in any cracks formed in the SEI during operation. As shown in Figure 2, the capacity of the PBS-coated silicon anode remained almost the same for over 300 hundred cycles, unlike that of the other two anodes.

By addressing the main issues associated with silicon anodes, this study paves the way to a new generation of LIBs with much higher capacity and durability. Satisfied with the results, Prof. Matsumi remarks, "The widespread adoption of high-capacity LIBs will allow electric cars reach longer distances, drones become larger, and renewable energy be stored more efficiently." He also adds that, within a decade, we might even see LIBs used as secondary energy sources in larger vehicles such as trains, ships, and aircrafts. Let us hope further research gets us there!

###

About Japan Advanced Institute of Science and Technology, Japan

Founded in 1990 in Ishikawa prefecture, the Japan Advanced Institute of Science and Technology (JAIST) was the first independent national graduate school in Japan. Now, after 30 years of steady progress, JAIST has become one of Japan's top-ranking universities. JAIST counts with multiple satellite campuses and strives to foster capable leaders with a state-of-the-art education system where diversity is key; about 40% of its alumni are international students. The university has a unique style of graduate education based on a carefully designed coursework-oriented curriculum to ensure that its students have a solid foundation on which to carry out cutting-edge research. JAIST also works closely both with local and overseas communities by promoting industry-academia collaborative research.

About Professor Noriyoshi Matsumi from Japan Advanced Institute of Science and Technology, Japan

Noriyoshi Matsumi obtained Master's and PhD degrees from Kyoto University, Japan, in 1997 and 2000, respectively. He joined JAIST in 2010, where he currently leads the Matsumi Lab at the School of Materials Science. He specializes in lithium-ion secondary batteries, metal-air batteries, electrocatalysis, solid polymer electrolytes, ionic liquids, and organoboron compounds, as well as solar cells and photoconductive materials. He has published over a hundred papers, authored 19 books, and received multiple awards from The Society of Polymer Science, Japan, and the Chemical Society of Japan.
