Study explains role of bone-conducted speech transmission in speech production and hearing

Scientists investigate transmission properties of bone-conducted (BC) speech sound, opening doors to BC-based speech and hearing assistive technology

Peer-Reviewed Publication

Japan Advanced Institute of Science and Technology

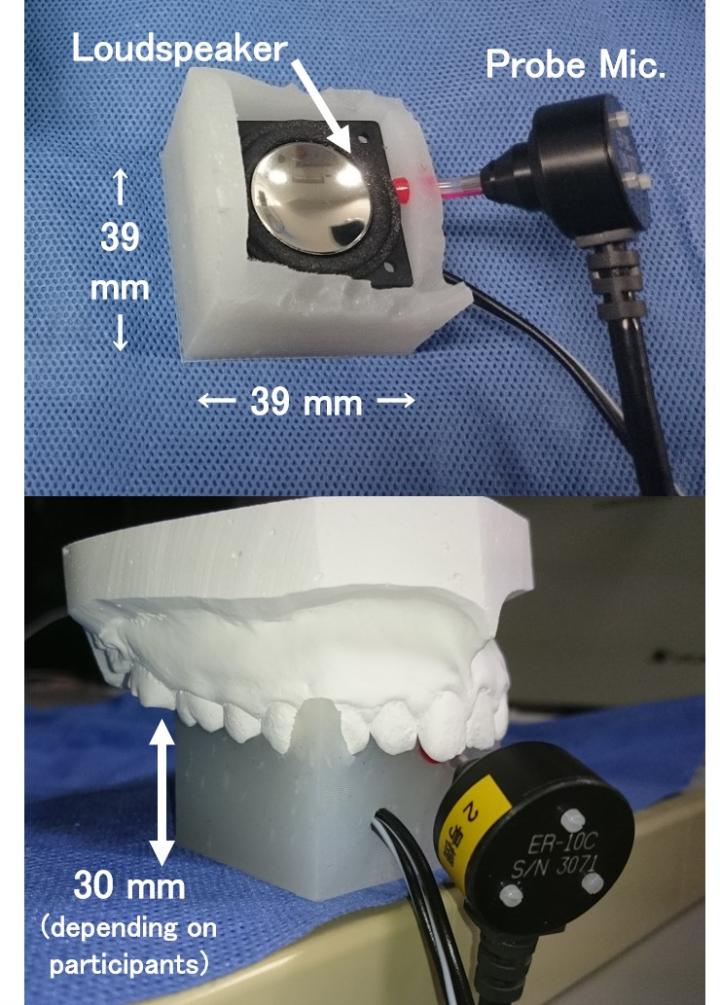

Photo: Excitation setup for measuring transmission characteristics

image: A loudspeaker was embedded in an enclosure fitted to the hard palate to make a quasi-static sound field in the OC. The probe microphone was placed in the sound field for measuring the response signal. view more

Credit: Masashi Unoki from Japan Advanced Institute of Science and Technology

The perception of our own voice depends on sound transmission through air (air-conducted) as well as through the skull bone (bone-conducted or BC). The transmission properties of BC speech are, however, not well understood. Now, scientists from Japan Advanced Institute of Science and Technology report their latest findings on BC transmission under the influence of oral cavity sound pressure, which can boost BC-based technology and basic research on hearing loss and speech impairment.

Ever wondered why your voice sounds different in a recording compared to how you perceive it as you speak? You are not alone. The reason has to do with the two different types of transmission of our own voice, namely, air-conducted (AC) speech and bone-conducted (BC) speech. In the case of AC speech, the voice is transmitted through the air via lip radiation and diffraction, whereas for BC speech, it is transmitted through the soft tissue and the skull bone. This is why when we hear ourselves in a recording, we only perceive the AC speech, but while speaking, we hear both the AC and the BC speech. In order to understand, then, the relationship between speech production and perception, both these speech transmission processes need to be accounted for.

This has been further corroborated by recent scientific investigations which show that BC speech transmission affects the perception of our own voice similarly to AC speech transmission. However, the transmission process of BC speech remains to be understood accurately.

In a new study published in Journal of Speech, Language, and Hearing Research, a team of scientists from Japan Advanced Institute of Science and Technology (JAIST) attempted to understand the BC speech transmission process by studying the vibrations of the regio temporalis (or RT, the temple region of the head) and the sound radiation in the ear canal (EC) caused by sound pressure in the oral cavity (OC). Professor Masashi Unoki of JAIST, who was involved in the study, outlines their approach, "We assumed a transmission pathway model for BC speech in which sound pressure in the OC is assumed to cause vibration of the soft tissue and the skull bone to reach the outer ear. Based on this assumption, we focused on how excitations in the OC would affect the BC transmission to the RT and the EC."

For measuring BC transmission, the scientists selected five university students (three men and two women) aged 23-27 years with normal hearing and speaking ability. In each participant, they fitted a small loudspeaker to their hard palate (the structure that sits at the front of the roof of the mouth) and then transmitted computer-generated excitation signals to them. The response signals were simultaneously recorded on the skin in their left RTs and right ECs with a BC microphone and a probe microphone, respectively. Each participant underwent 10 measurement trials.

The team found, upon analyzing the transfer function (which models the frequency response of a system), that the RT vibrations support all frequencies up to 1 KHz while the EC pressure accentuates frequencies in the 2-3 KHz range. Combining this observation with an earlier report which showed that BC speech is perceived to be "low pitch", or dominated by low frequencies, the team concluded that the EC transmission, which cuts off both very low and very high frequencies, does not play a major role in BC speech perception.

The results have excited scientists who foresee several applications of BC transmission in future technology. As Prof. Unoki surmises, "Our findings can be used to develop BC-based headphones and hearing aids in the future as well as provide speech on BC microphones and speakers currently employed by smart wearable devices. In addition, it can be used to investigate auditory feedback in BC speech communications that can influence basic research on hearing loss and speech disorders."

Based on these promises, it looks like future technology might one day even help us express ourselves better!


About Japan Advanced Institute of Science and Technology, Japan

Founded in 1990 in Ishikawa prefecture, the Japan Advanced Institute of Science and Technology (JAIST) was the first independent national graduate school in Japan. Now, after 30 years of steady progress, JAIST has become one of Japan's top-ranking universities. JAIST counts with multiple satellite campuses and strives to foster capable leaders with a state-of-the-art education system where diversity is key; about 40% of its alumni are international students. The university has a unique style of graduate education based on a carefully designed coursework-oriented curriculum to ensure that its students have a solid foundation on which to carry out cutting-edge research. JAIST also works closely both with local and overseas communities by promoting industry-academia collaborative research.

About Professor Masashi Unoki from Japan Advanced Institute of Science and Technology, Japan

Dr. Masashi Unoki is a Professor at the School of Information Science at the Japan Advanced Institute of Science and Technology (JAIST) where he received his M.S. and Ph.D. degrees in 1996 and 1999, respectively. His main research interests are in auditory motivated signal processing and the modeling of auditory systems. Dr. Unoki received the Sato Prize from the Acoustical Society of Japan (ASJ) in 1999, 2010, and 2013 for an Outstanding Paper and the Yamashita Taro "Young Researcher" Prize from the Yamashita Taro Research Foundation in 2005. He has published 198 papers and has authored 14 books so far.
