WEST LAFAYETTE, Ind. - The smallest wires ever developed in silicon - just one atom tall and four atoms wide - have been shown by a team of researchers from the University of New South Wales, Melbourne University and Purdue University to have the same current-carrying capability as copper wires.
Experiments and atom-by-atom supercomputer models of the wires have found that the wires maintain a low capacity for resistance despite being more than 20 times thinner than conventional copper wires in microprocessors.
The discovery, which was published in this week's journal Science, has several implications, including:
- For engineers it could provide a roadmap to future nanoscale computational devices where atomic sizes are at the end of Moore's law. The theory shows that a single dense row of phosphorus atoms embedded in silicon will be the ultimate limit of downscaling.
- For computer scientists, it places donor-atom based silicon quantum computing closer to realization.
- And for physicists, the results show that Ohm's Law, which demonstrates the relationship between electrical current, resistance and voltage, continues to apply all the way down to an atomic-scale wire.
Bent Weber, the paper's lead author and a graduate student in the Centre of Excellence for Quantum Computation and Communication Technology at the University of New South Wales, was thrilled with the finding.
"It's extraordinary to show that Ohm's Law, such a basic law, still holds even when constructing a wire from the fundamental building blocks of nature - atoms," he says.
The innovation of the Australian group was to build the circuits up atom by atom, instead of the current method of building microprocessors, in which material is stripped away, says Gerhard Klimeck, a Purdue professor of electrical and computer engineering and director of the Network for Computational Nanotechnology.
"Typically we chip or etch material away, which can be very expensive, difficult and inaccurate," Klimeck says. "Once you get to 20 atoms wide you have atomic flucuations that make scaling difficult. But this experimental group built devices by placing atomically thin layers of phosphorus in silicon and found that with densely doped phosphorus wires just four atoms wide it acts like a wire that conducts just as well as metal."
The goal of the research is to develop future quantum computers in which single atoms are used for the computation, says Michelle Simmons, director of the Centre of Excellence for Quantum Computation and Communication Technology at the University of New South Wales and the project's principal investigator.
"We are on the threshold of making transistors out of individual atoms," Simmons says. "But to build a practical quantum computer we have recognized that the interconnecting wiring and circuitry also needs to shrink to the atomic scale."
Hoon Ryu, a Purdue graduate who is now a senior researcher with the Korea Institute of Science and Technology's Supercomputing Center, said the practicality of the research is exciting.
"The metallic wire is in principle quite difficult to be scaled into one- to two-nanometer pitch, but in both experimental and modeling views, the research result is quite remarkable," Ryu says. "For the first time, this demonstrates the possibility that densely doping wire is a viable alternative for the next-gerenation, ultra-scale metallic interconnect in silicon chips."
To assist the Australian researchers, Klimeck's research team ran hundreds of simulations to study the variability of these nanoscale structures.
"Having the throughput capability for a highly scalable code is important for doing that, and we have that capability here at Purdue with http://nanoHUB.org," Klimeck says. "We ran hundreds of cases to understand the potential landscape of these devices, so this was computationally intensive work."
Klimeck says that in addition to the project's scientific and engineering implications, he found the collaboration the most rewarding aspect.
"It is an exciting collaboration," he says. "We were doing simulations of experimental work, which was based on a theoretical model. So we were bringing the three legs of modern science together in one project. Plus, our graduate students are able to stay in contact and work with each other despite working in various locations around the world. It's hard to think of a better example of how science is done today."
Writer: Steve Tally, 765-494-9809, email@example.com, Twitter: sciencewriter
Centre of Excellence for Quantum Computation and Communication Technology at the University of South Wales: http://www.cqc2t.org
Network for Computational Nantechnology, nanoHUB, Purdue University: https://www.ncn.purdue.edu/
Michelle Simmons: http://www.cqc2t.org/biography/98
Gerhard Klimeck: http://nanoHUB.org/klimeck

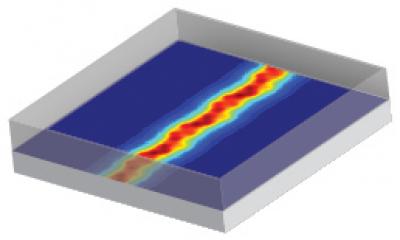

Wires just one atom tall have been created by inserting a string of phosphorus atoms in a silicon crystal by a team of researchers from the Univeristy of New South Wales, Melbourne Univeristy and Purdue University. This image from a computational simulation run of the wires shows electron density as electrons flow from left to right. The wires are 20 times smaller than the smallest wires now available and measure just four atoms wide by one phosphorus atom tall. (Purdue University image/Sunhee Lee, Hoon Ryu and Gerhard Klimeck)
