Type 1 diabetes mellitus (DMT1) contributes to 10% of the total of cases of diabetes mellitus worldwide, mainly in young people and is regarded as a growing health risk. DMT1 is characterised by the self-immune destruction of the pancreatic cells that produce insulin (pancreatic islets), which leads to severe insulin deficiency and which is followed by the raising of blood glucose levels. Right now, the therapy based on insulin injections is the treatment applied in type 1 diabetic patients. However, in addition to the medical complications this means in the long term, this treatment requires multiple daily measurements of blood glucose and the lifelong sub-cutaneous administration of insulin.
Alternatively, "the transplant of isolated pancreatic islets from donors provides a fresh source of insulin-producing cells capable of meeting insulin requirements in accordance with blood glucose levels in patients with DM1. One of the drawbacks of islet transplants is the long-term use of immunosuppressant drugs to prevent the immune rejection of the transplanted islets; these drugs lower the patient's defences and entail serious medical complications", explained the author of the work Albert Espona-Noguera. "To avoid this problem," he went on, "the pancreatic islets can be isolated from the patient's immune system by means of microencapsulation techniques in which the islets are encapsulated in microcapsules made of biocompatible (non-toxic) materials. Among many materials used in cell microencapsulation, alginate is the most widely used one. This natural polymer has excellent properties for biomedical applications as it offers high compatibility and low toxicity." However, "the microencapsulation technique has various technical obstacles that are hampering its clinical application. A crucial problem is the high number of empty microcapsules generated during the process to microencapsulate the islets, which leads to a large increase in the volume of microcapsules to be implanted, and which in turn may increase the host's immune reaction following implantation," said Espona-Noguera.
Innovative system of magnetic separation

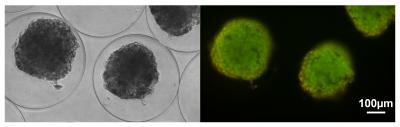

In order to avoid the high number of empty microcapsules, "we have come up with an innovative approach for purifying the microencapsulated islets in order to reduce the implant volume by separating the microencapsulated islets from the empty microcapsules", explained the researcher at the UPV/EHU-Ciber BNN which is part of the Nanbiosis ICTS (Singular Scientific and Technological Infrastructure). "We have developed a system to magnetically separate the microcapsules and which combines different technologies: magnetic nanoparticles and a microfluidic chip, in other words, a chip with channels of micrometric size produced by means of 3D printing techniques and which contains strategically placed magnets," added the researcher. "To separate the microcapsules, the pancreatic islets are put into contact with magnetic nanoparticles, thus providing them with magnetic properties.
After that, the islets are microencapsulated, thus obtaining capsules containing magnetic islets and non-magnetic empty capsules. When the microcapsules are pumped through the chip's microchannels, the magnets move the magnetic capsules towards the exit microchannel, while the non-magnetic empty ones make their way through another exit microchannel," he specified. That way "we are able to eliminate the empty capsules and, as a result, we reduce the volume of the therapeutic microcapsule implant. The great purification efficiency of this magnetic separation system has enabled us to lower the implant volume by nearly 80%, thus reducing the complications arising out of the implanting of large volumes of microcapsules and providing us with an alternative DMT1 treatment", stressed Espona-Noguera.
In addition, "in this work we studied the functionality of the purified implants in diabetic animal models. We saw that following subcutaneous implanting of the microencapsulated islets in diabetic animals, the blood glucose levels returned to normal levels for nearly 17 weeks", he added.
A. Espona-Noguera, J. Etxebarria-Elezgarai, L. Saenz del Burgo, A. Cañibano-Hernández, H. Gurruchaga, F.J. Blanco, G. Orive, Rosa M. Hernández, F. Benito-Lopez, J. Ciriza, L. Basabe-Desmonts, J.L. Pedraz
Type 1 Diabetes Mellitus reversal via implantation of magnetically purified microencapsulated pseudoislets
International Journal of Pharmaceutics (2019)
