QLED screens have been on the market for a few years now. They are known for their bright, intense colours, which are produced using what is known as quantum dot technology: QLED stands for quantum dot light emitting diode. Researchers at ETH Zurich have now developed a technology that increases the energy efficiency of QLEDs. By minimising the scattering losses of light inside the diodes, a larger proportion of the light generated is emitted to the outside.
Conventional QLEDs consist of a multitude of spherical semiconductor nanocrystals, known as quantum dots. In a screen, when these nanocrystals are excited from behind with UV light, they convert it into coloured light in the visible range. The colour of light each nanocrystal produces depends on its material composition.
However, the light these spherical nanocrystals emit scatters in all directions inside the screen; only about one-fifth of it makes its way to the outside world and is visible to the observer. To increase the energy efficiency of the technology, scientists have been trying for years to develop nanocrystals that emit light in only one direction (forward, towards the observer) - and a few such light sources already exist. But instead of spherical crystals, these sources are composed of ultra-thin nanoplatelets that emit light only in one direction: perpendicular to the plane of the platelet.
If these nanoplatelets are arranged next to each other in a layer, they produce a relatively weak light that is not sufficient for screens. To increase the light intensity, scientists are attempting to superimpose several layers of these platelets. The trouble with this approach is that the platelets begin to interact with each other, with the result that the light is again emitted not only in one direction but in all directions.
Stacked and insulated from each other
Chih-Jen Shih, Professor of Technical Chemistry at ETH Zurich, and his team of researchers have now stacked extremely thin (2.4 nanometres) semiconductor platelets in such a way that they are separated from each other by an even thinner (0.65 nanometre) insulating layer of organic molecules. This layer prevents quantum-physical interactions, which means that the platelets emit light predominantly in only one direction, even when stacked.
"The more platelets we pile on top of each other, the more intense the light becomes. This lets us influence the light intensity without losing the preferred direction of emission," says Jakub Jagielski, a doctoral student in Shih's group and first author of the study published in Nature Communications. That is how the scientists managed to produce a material that for the first time emits high-intensity light in only one direction.
Very energy-efficient blue light
Using this process, the researchers have produced light sources for blue, green, yellow and orange light. They say that the red colour component, which is also required for screens, cannot yet be realised with the new technology.

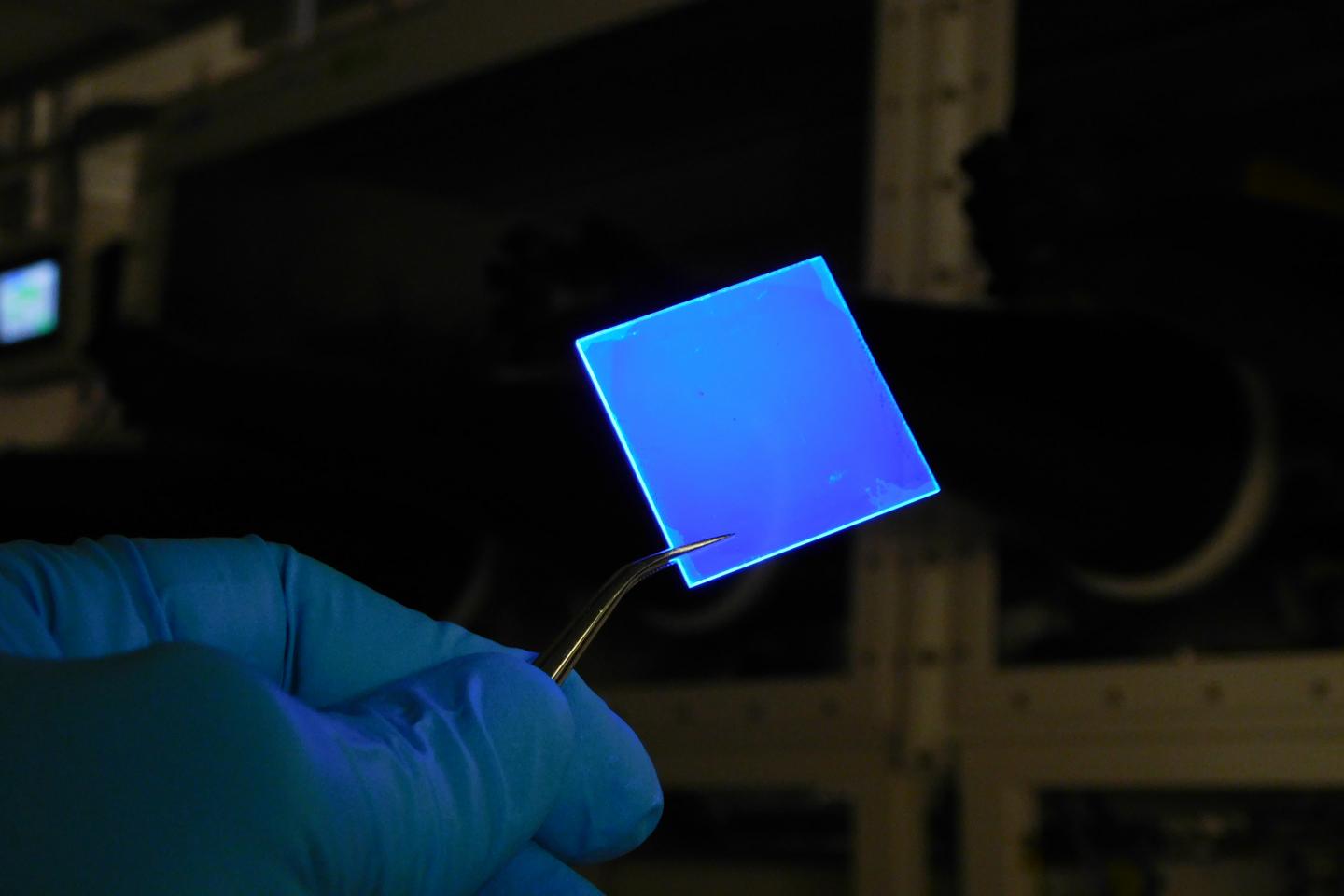

In the case of the newly created blue light, around two-fifths of the light generated reaches the eye of the observer, compared to only one-fifth with conventional QLED technology. "This means that our technology requires only half as much energy to generate light of a given intensity," Professor Shih says. For other colours, however, the efficiency gain achieved so far is smaller, so the scientists are conducting further research with a view to increasing this.
Compared to conventional LEDs, the new technology has another advantage, as the scientists emphasise: the novel stacked QLEDs are very easy to produce in a single step. It is also possible to increase the intensity of conventional LEDs by arranging several light-emitting layers on top of each other; however, this needs to be done layer by layer, which makes production more complex.
