Nanomaterials researchers in Finland, the United States and China have created a colour atlas for 466 unique varieties of single-walled carbon nanotubes.

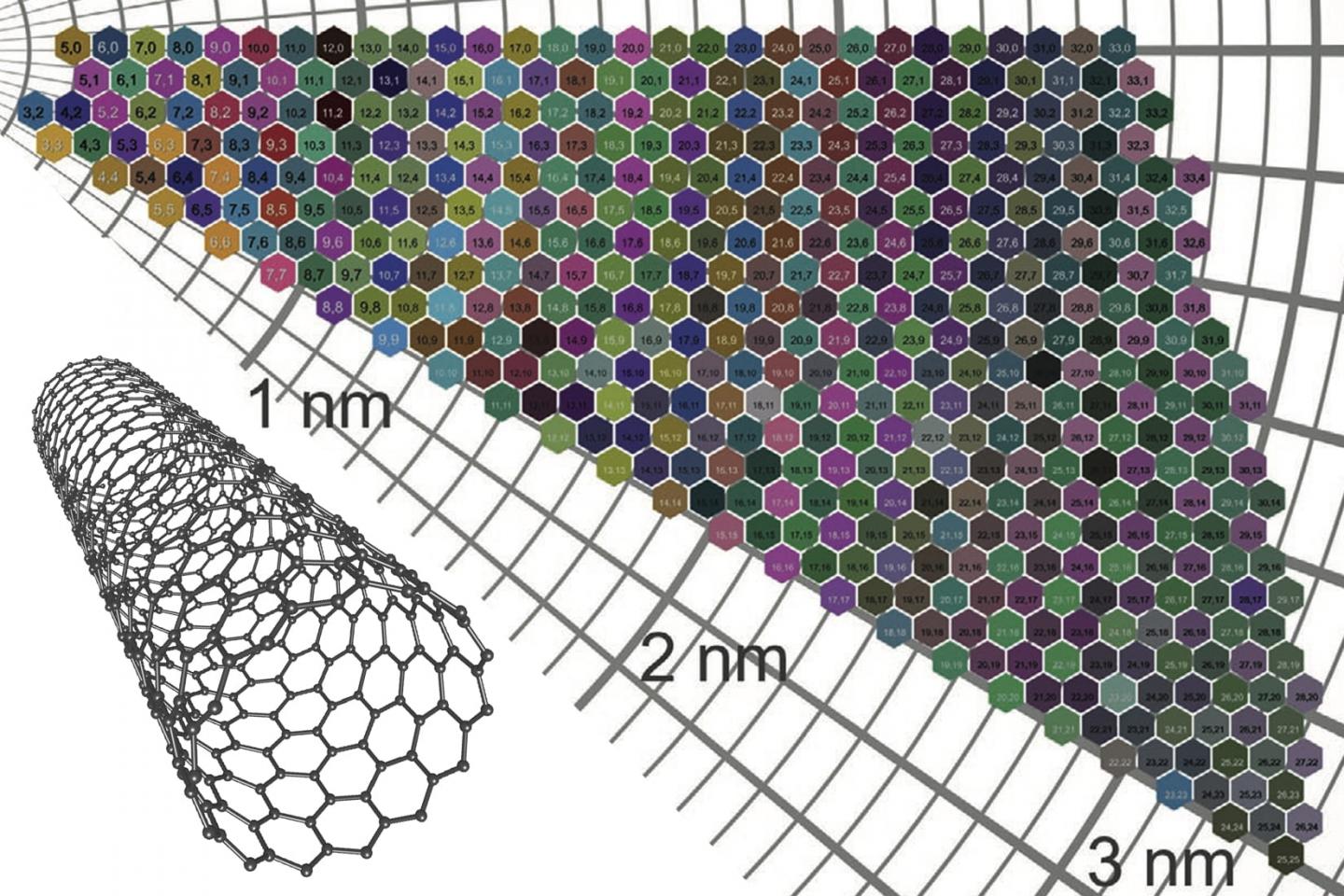

The nanotube colour atlas is detailed in a study in Advanced Materials about a new method to predict the specific colors of thin films made by combining any of the 466 varieties. The research was conducted by researchers from Aalto University in Finland, Rice University and Peking University in China.
"Carbon, which we see as black, can appear transparent or take on any colour of the rainbow," said Aalto physicist Esko I. Kauppinen, the corresponding author of the study. "The sheet appears black if light is completely absorbed by carbon nanotubes in the sheet. If less than about half of the light is absorbed in the nanotubes, the sheet looks transparent. When the atomic structure of the nanotubes causes only certain colours of light, or wavelengths, to be absorbed, the wavelengths that are not absorbed are reflected as visible colours."
Carbon nanotubes are long, hollow carbon molecules, similar in shape to a garden hose but with sides just one atom thick and diameters about 50,000 times smaller than a human hair. The outer walls of nanotubes are made of rolled graphene. And the wrapping angle of the graphene can vary, much like the angle of a roll of holiday gift wrap paper. If the gift wrap is rolled carefully, at zero angle, the ends of the paper will align with each side of the gift wrap tube. If the paper is wound carelessly, at an angle, the paper will overhang on one end of the tube.
The atomic structure and electronic behavior of each carbon nanotube is dictated by its wrapping angle, or chirality, and its diameter. The two traits are represented in a "(n,m)" numbering system that catalogs 466 varieties of nanotubes, each with a characteristic combination of chirality and diameter. Each (n,m) type of nanotube has a characteristic colour.
Kauppinen's research group has studied carbon nanotubes and nanotube thin films for years, and it previously succeeded in mastering the fabrication of coloured nanotube thin films that appeared green, brown and silver-grey.
In the new study, Kauppinen's team examined the relationship between the spectrum of absorbed light and the visual colour of various thicknesses of dry nanotube films and developed a quantitative model that can unambiguously identify the coloration mechanism for nanotube films and predict the specific colors of films that combine tubes with different inherent colours and (n,m) designations.
Rice engineer and physicist Junichiro Kono, whose lab solved the mystery of colourful armchair nanotubes in 2012, provided films made solely of (6,5) nanotubes that were used to calibrate and verify the Aalto model. Researchers from Aalto and Peking University used the model to calculate the absorption of the Rice film and its visual colour. Experiments showed that the measured colour of the film corresponded quite closely to the colour forecast by the model.
The Aalto model shows that the thickness of a nanotube film, as well as the colour of nanotubes it contains, affect the film's absorption of light. Aalto's atlas of 466 colours of nanotube films comes from combining different tubes. The research showed that the thinnest and most colourful tubes affect visible light more than those with larger diameters and faded colours.
"Esko's group did an excellent job in theoretically explaining the colors, quantitatively, which really differentiates this work from previous studies on nanotube fluorescence and coloration," Kono said.
Since 2013, Kono's lab has pioneered a method for making highly ordered 2D nanotube films. Kono said he had hoped to supply Kauppinen's team with highly ordered 2D crystalline films of nanotubes of a single chirality.
"That was the original idea, but unfortunately, we did not have appropriate single-chirality aligned films at that time," Kono said. "In the future, our collaboration plans to extend this work to study polarization-dependent colors in highly ordered 2D crystalline films."
The experimental method the Aalto researchers used to grow nanotubes for their films was the same as in their previous studies: Nanotubes grow from carbon monoxide gas and iron catalysts in a reactor that is heated to more than 850 degrees Celsius. The growth of nanotubes with different colours and (n,m) designations is regulated with the help of carbon dioxide that is added to the reactor.
"Since the previous study, we have pondered how we might explain the emergence of the colours of the nanotubes," said Peking University Professor Nan Wei, who previously worked as a postdoctoral researcher at Aalto. "Of the allotropes of carbon, graphite and charcoal are black, and pure diamonds are colourless to the human eye. However, now we noticed that single-walled carbon nanotubes can take on any colour: for example, red, blue, green or brown."
Kauppinen said coloured thin films of nanotubes are pliable and ductile and could be useful in coloured electronics structures and in solar cells.
"The colour of a screen could be modified with the help of a tactile sensor in mobile phones, other touch screens or on top of window glass, for example," he said.
Kauppinen said the research can also provide a foundation for new kinds of environmentally friendly dyes.
Kono is a professor of electrical and computer engineering, physics and astronomy, and materials science and nanoengineering and the director of Rice's Applied Physics Graduate Program.
Additional study co-authors include Natsumi Komatsu, Weilu Gao and Alina Lyuleeva, all of Rice; Yongping Liao, Qiang Zhang, Aqeel Hussain, Er-Xiong Ding, Janne Halme and Hua Jiang, all of Aalto; Fengrui Yao and Kaihui Liu, both of Peking University; and Ying Tian of Dalian Maritime University in China.
The research was funded by the European Union (FP7-604472), Aalto University's Energy Efficiency Research Program, the Academy of Finland via project 316572 (CNTstress),
the Finnish Funding Agency for Technology and Innovation (3303/31/2015-CNT-PV, 1882/31/2016-FEDOC) and the Alberta Technical University of Munich International Graduate School for Hybrid Functional Materials.
