Foveated glasses-free 3D display with ultrawide field of view via a large-scale 2D-metagrating complex

Peer-Reviewed Publication

Light Publishing Center, Changchun Institute of Optics, Fine Mechanics And Physics, CAS

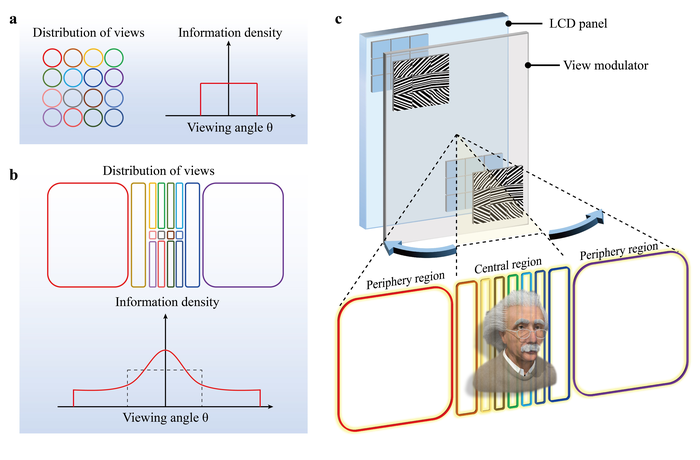

Working principle of the foveated glasses-free 3D display

image: a, State-of-the-art glasses-free 3D display with uniformly distributed information. The irradiance distribution pattern of each view is a dot or a line for current 3D displays based on microlens or cylindrical lens array. b, The proposed glasses-free 3D display with variant distributed information. The irradiance distribution pattern of each view consists of dots, lines, or rectangles. To make a fair comparison, the number of views (16 views) is consistent with Fig. 1a. c, Schematic of a foveated glasses-free 3D display. An LCD panel matches the view modulator pixel by pixel. For convenience, two voxels are shown on the view modulator. Each voxel contains 3×3 pixelated 2D metagratings to generate View 1~View 9. view more

Credit: by Jianyu Hua, Erkai Hua, Fengbin Zhou, Jiacheng Shi, Chinhua Wang, Huigao Duan, Yueqiang Hu, Wen Qiao & Linsen Chen

Since the advent of electronic devices such as smart phones and tablets in 2007, researchers have been looking for the next generation of transformative technologies. Glasses-free 3D display is one of the technologies that will redefine portable electronics. However, limited by the resolution of display panels, the spatial resolution, angular resolution and viewing angle have become critical trade-offs in 3D displays.

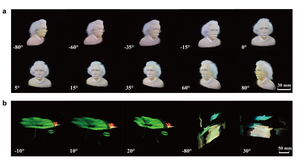

In a new paper published in Light Science & Application, Prof. Linsen Chen, Prof. Wen Qiao and co-workers at Soochow University, China, proposed a general approach of glasses-free 3D display, through which spatially variant information is projected over the observation region. Densely packaged views are arranged at the center, while sparsely arranged views are distributed at the periphery. To manipulate view distribution over a large scale, they designed a feasible strategy based on a view modulator full covered with 2D-metagrating complex (2DMC). More interestingly, they developed a flexible interference lithography (IL) system to enable the fabrication of the view modulator with more than 1,000,000 pixelated 2D metagratings over a size larger than 9-inch. With a total display information smaller than 4 K, a static or video rate full-color 3D display with an unprecedented field of view (FOV) of 160° is demonstrated. The proposed 3D display system has a thin form factor for potential applications in portable electronic devices.

The proposed foveated 3D display is centered around a large-scale 2D-metagrating complex (2DMC), which is served as a view modulator. The 2DMCs can be manipulated to generate the desired radiation patterns applied in different scenarios. For example, dot-shaped views provide the highest information density. The vertically oriented line-shaped views reduce the information density in vertical direction while maintaining the information density in horizontal direction, etc. These scientists summarize the operational principle of their 3D display system:

“In prior studies, constant information density was provided within the viewing angle by views with the same distribution pattern. In contrast, we propose 3D display with spatially variant information density by precisely manipulating the view distribution into hybrid dot/line/rectangle shape. As a result, the information density will be modulated as in the foveated vision of vertebrate eyes.”

“The designed large-scale 2D-metagrating complex has three purpose: (1) to vary the angular separation of the views in different region; (2) to tailor the irradiance pattern of each view to eliminate overlap between views to avoid crosstalk; (3) to avoid gaps between views to ensure smooth transition within the field of view.” they added.

“The demonstrated spatially variant information density 3D display opens a new avenue for glasses-free 3D displays by tackling the critical trade-off among the spatial resolution, angular resolution and viewing angle. We anticipate the ultrawide-FOV foveated 3D display to be used in commercial applications such as consumer electronic devices.” the scientists forecast.
