Is it possible to detect and assess neuromuscular functions via wearable, soft yet durable strain sensors?

Peer-Reviewed Publication

Science China Press

Fig.1 Fabrication of GP-laminate and its mechanical properties.

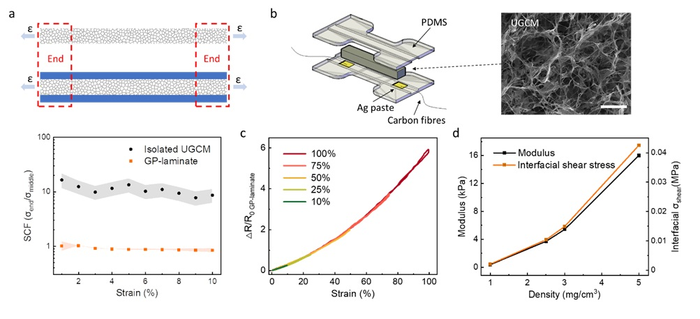

image: (a) The finite element analysis (FEA) model structure (top) and the computed stress concentration factors (SCF) against the loading tensile strain (bottom) of isolated UGCM (black curve) and the UGCM assembled in between two rubber layers (orange curve), respectively. The SCF is defined as the ratio of max principal stresses distributed at the ends and the middle area. (b) Schematic shows the key construction of the assembled GP-laminate of UGCM with in-built grooves on PDMS layers. A UGCM panel was sandwiched into the groove formed by two PDMS layers. The two ends of the UGCM were separately connected to two soft conductive wires via Ag-pastes. (c)Relative change in resistance of the GP-laminate being stretched to varying levels of strain: 10% (green), 25% (light green), 50% (yellow), 75% (orange) and 100% (red) respectively, indicating its good stretchability and sensing ability. △R refers to the resistance changes of the GP-laminate under the specific strain and R0 refers to the base resistance of the GP-laminate before stretch. (d)The GP-laminate with highly flexibility. view more

Credit: ©Science China Press

Simultaneously achieving ultra-softness, ultrahigh sensitivity and mechanical resiliency is a major challenge for wearable electronics and soft machines. The soft yet wearable sensors with their mechanical properties well matched with that of the soft human skin have largely fulfilled the demands for achieving the high-fidelity and real-time detection and assessment of different bodily movements remotely. However, as restricted by the intrinsic viscoelasticity of conventional soft materials, current wearable sensors based on soft materials are primarily utilized for monitoring low-frequency and relatively large bodily motions. Detection of subtle and fast neuromuscular functions with a soft material is crucial for the design of highly sophisticated wearable electronics but still remains a challenge.

In a paper published recently in National Science Review, an international multidisciplinary team present a new design to tackle this challenge. By taking the advantage of their previous discovery about the unique mechanical and electromechanical properties of the ultralight graphene-based cellular materials (UGCMs), they discovered that the UGCM possesses a unique interfacial stress transfer mechanism when being in contact with a rubber material (Fig. 1). They found that unlike the traditional electroconductive aerogels, ultralow density UGCMs ( ~ 1 mg/cm3) were able to conformably deform with the rubber layer up to 100% strain. This discovery not only endows the intrinsically fragile UGCMs with large stretchability by simply wrapping them with a rubber outer layer (forming the GP-laminate); but also provides a new method to retain the unique dynamic electromechanical property of the UGCM within the hybrid structure. The resultant GP-laminate exhibits a highly sensitive and broadband frequency resistance response (>180 Hz) for a wide range of strains.

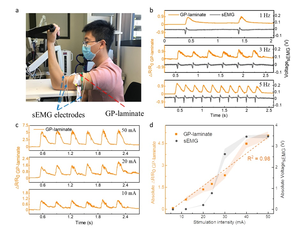

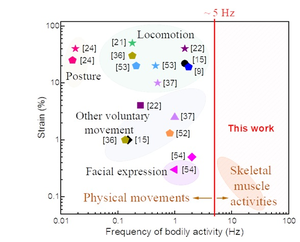

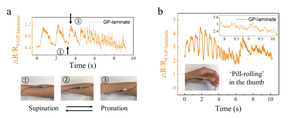

The team, working with experts from different disciplines, sought to further explore if such UGCM/rubber composites were able to monitor the subtle and fast neuromuscular functions (Fig. 2). The team performed the clinical tests on human subjects and confirmed the accuracy of GP-laminate for monitoring different skeletal muscle groups with the traditional, bulky and costly technique – electromyography (EMG) as the reference. The EMG technique has long been used for monitoring muscle functions. The team found that, during either electrically or voluntarily evoked muscle contractions, the GP-laminate showed highly consistent signal response to EMG at different intensity and frequency ranges (Fig. 3). This further allow the assessment for neuromuscular movement disorders, such as Parkinson’s and tremors (Fig. 4). This study is conducted by Dr. Zijun He under the supervision of Prof. Dan Li (Chemical Engineering, The University of Melbourne) and A/Prof. Ling Qiu (Tsinghua Shenzhen International Graduate School, Tsinghua University).

See the article:

Detecting subtle yet fast skeletal muscle contractions with ultrasoft and durable graphene-based cellular materials
