New magnesium superionic conductor towards lithium-free solid-state batteries

Scientists demonstrate for the first time a metal–organic framework-based magnesium ion conductor showing superionic conductivity even at room temperature

Peer-Reviewed Publication

Tokyo University of Science

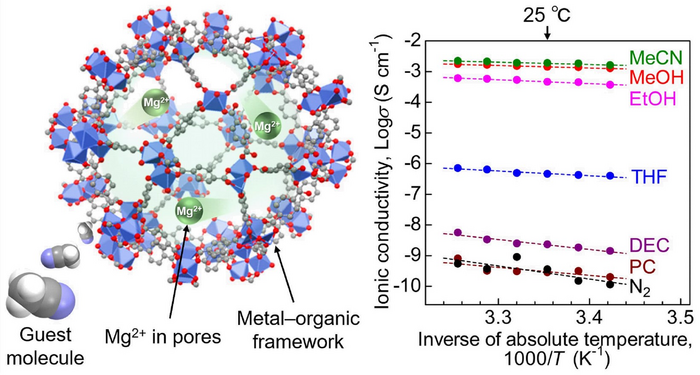

A new, magnesium superionic conductor based on metal–organic frameworks

image: The new Mg2+ conductor consists of a metal–organic framework holding Mg2+ ions in its pores. A “guest molecule” acetonitrile is introduced into the structure to accelerate the ionic conductivity of Mg2+ and allow its migration through the solid. view more

Credit: Masaaki Sadakiyo from Tokyo University of Science

The development of highly efficient energy storage devices that can store renewable energy is crucial to a sustainable future. In today’s world, solid-state rechargeable lithium ion (Li+) batteries are the state of the art. But lithium is a rare earth metal, and society’s dependence on the element is likely to lead to a rapid decline in resources and subsequent price hikes.

Magnesium ion (Mg2+)-based batteries have gained momentum as an alternative to Li+. The earth’s crust holds ample magnesium, and Mg2+-based energy devices are said to have high energy densities, high safety, and low cost. But the wide application of Mg2+ is limited by its poor conductivity in solids at room temperature. Mg2+ has poor solid-state conductivity because divalent positive ions (2+) experience strong interactions with their neighboring negative ions in a solid crystal, impeding their migration through the material.

This hurdle was recently overcome by a research team from the Tokyo University of Science (TUS). In their new study published online on 4 May 2022 and on 18 May 2022 in volume 144 issue 19 of the Journal of the American Chemical Society, they report for the first time, a solid-state Mg2+ conductor with superionic conductivity of 10−3 S cm−1 (the threshold for practical application in solid-state batteries). This magnitude of conductivity for Mg2+ conductors is the highest reported to date. According to Junior Associate Professor Masaaki Sadakiyo of TUS, who led the study, “In this work, we exploited a class of materials called metal–organic frameworks (MOFs). MOFs have highly porous crystal structures, which provide the space for efficient migration of the included ions. Here, we additionally introduced a “guest molecule,” acetonitrile, into the pores of the MOF, which succeeded in strongly accelerating the conductivity of Mg2+.” The research group further included Mr. Yuto Yoshida, also from TUS, Professor Teppei Yamada from The University of Tokyo, and Assistant Professor Takashi Toyao and Professor Ken-ichi Shimizu from Hokkaido University. The paper was made available online on May 4, 2022 and was published in Volume 144 Issue 19 of the journal on May 18, 2022

The team used a MOF known as MIL-101 as the main framework and then encapsulated Mg2+ ions in its nanopores. In the resultant MOF-based electrolyte, Mg2+ was loosely packed, thereby allowing the migration of divalent Mg2+ ions. To further enhance ion conductivity, the research team exposed the electrolyte to acetonitrile vapors, which were adsorbed by the MOF as guest molecules.

The team then subjected the prepared samples to an alternating current (AC) impedance test to measure ionic conductivity. They found that the Mg2+ electrolyte exhibited a superionic conductivity of 1.9 × 10−3 S cm−1. This is the highest ever reported conductivity for a crystalline solid containing Mg2+.

To understand the mechanism behind this high conductivity, the researchers carried out infrared spectroscopic and adsorption isotherm measurements on the electrolyte. The tests revealed that the acetonitrile molecules adsorbed in the framework allowed for the efficient migration of the Mg2+ ions through the body of the solid electrolyte.

These findings of this study not only reveal the novel MOF-based Mg2+ conductor as a suitable material for battery applications, but also provide critical insights into the development of future solid-state batteries. "For a long time, people have believed that divalent or higher valency ions cannot be efficiently transferred through a solid. In this study, we have demonstrated that if the crystal structure and surrounding environment are well-designed, then a solid-state high-conductivity conductor is well within research,” explains Dr. Sadakiyo.

When asked about the research group’s future plans, he reveals, We hope to further contribute to society by developing a divalent conductor with even higher ionic conductivity.

We look forward to seeing what they develop next!







About The Tokyo University of Science

Tokyo University of Science (TUS) is a well-known and respected university, and the largest science-specialized private research university in Japan, with four campuses in central Tokyo and its suburbs and in Hokkaido. Established in 1881, the university has continually contributed to Japan's development in science through inculcating the love for science in researchers, technicians, and educators.

With a mission of “Creating science and technology for the harmonious development of nature, human beings, and society", TUS has undertaken a wide range of research from basic to applied science. TUS has embraced a multidisciplinary approach to research and undertaken intensive study in some of today's most vital fields. TUS is a meritocracy where the best in science is recognized and nurtured. It is the only private university in Japan that has produced a Nobel Prize winner and the only private university in Asia to produce Nobel Prize winners within the natural sciences field.



About Dr. Masaaki Sadakiyo from Tokyo University of Science

Dr. Masaaki Sadakiyo is a Junior Associate Professor at the Faculty of Science Division I, Department of Applied Chemistry at Tokyo University of Science. He obtained his bachelor’s and master’s degree from Kyushu University’s Faculty of Science or Graduate School of Science in Department of Chemistry. He then went on to complete his PhD from Kyoto University. Dr. Sadakiyo’s interests include solid-state chemistry, inorganic chemistry, and coordination chemistry. His team also works on metal–organic frameworks, catalysis, and ion-conductive materials.

Funding information

This study was partly supported by the Nippon Sheet Glass Foundation for Materials Science and Engineering, the Takano Science Foundation, and JSPS Grant-in-Aid for Scientific Research(no. 21K05089).
