Robotic intracellular electrochemical sensing for adherent cells

Peer-Reviewed Publication

Beijing Institute of Technology Press Co., Ltd

The automated system for intracellular electrochemical sensing

image: The intracellular sensing robot automatically performs quantitative measurements on multiple cells. view more

Credit: Weikang Hu, Southern University of Science and Technology

A research team from Southern University of Science and Technology developed an automated intracellular sensing system, which provides a high-efficiency approach to reveal cellular intrinsic characteristics and heterogeneity for better investigation of disease progression or early disease diagnosis. The new research paper was published on Sep. 2 in the journal Cyborg and Bionic Systems.


Measurement of intracellular biochemical processes is significant to quantitatively understand the function of biological systems. Nanopipette-based intracellular sensing is an in-situ, label-free and nondestructive measurement method. However, the small size of cells and nanopipette tip make it difficult to efficiently perform intracellular measurement by manual manipulation, posing a hurdle in attaining statistically significant data. Therefore, researchers designed a highly efficient and consistent intracellular sensing system by integrating automation technology.

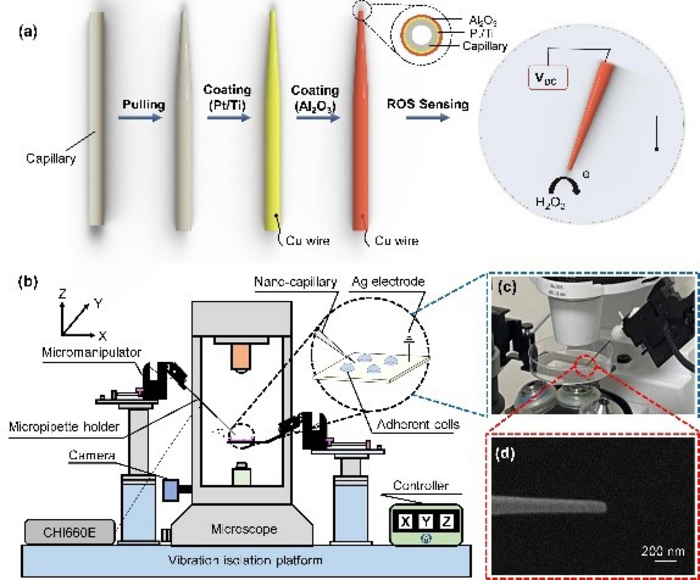

First, the nanopipette-based sensor with a tip diameter of around 100 nm was designed, where a platinum ring on the nanopipette tip was used as a working electrode for the electrochemical sensing of reactive oxygen species (ROS). At the same time, the sensor was mounted on a high-precision micromanipulator with a motion resolution of 5 nm, and an inverted fluorescence microscope was used for visual feedback.


In addition, the team proposed a label-free cell detection algorithm, which can avoid the influence of fluorescent staining on cells and accurately locate the penetration sites for high-efficient intracellular measurement. The algorithm automatically moves the cells to a defocus plane to maximize the grayscale difference between the adherent cells and the background, thus simplifying cell detection and improving the cell recognition rate.


Besides, a non-overshoot nanopipette tip positioning was developed to avoid the tip damage caused by the tip colliding with the cell dish during autofocusing. Specifically, the normalized correlation coefficients during template matching at different z-axis positions were utilized as the focus measure to autofocus the nanopipette tip without overshooting and tip damage.


Furthermore, proximity detection based on ion current feedback was used to accurately determine the relative height between the nanopipette tip and the cell surface because of the highly varied thickness of the adherent cells. When the nanopipette tip approaches the cell, the tip will be gradually blocked by the cell, and the ionic current through the tip opening will decrease. Therefore, the relative height between the tip and the cell can be accurately measured.


Finally, the cell penetration and electrochemical detection of ROS were evaluated by human breast cancer cells and zebrafish embryo cells, and the variation of ROS signals indicates the system is capable of highly selective response to ROS and quantitatively measurement of intracellular ROS.


This work provides a systematic approach for automated intracellular sensing for adherent cells, laying a solid foundation for high-throughput detection, diagnosis, and classification of different forms of biochemical reactions within single cells. Besides, the proposed system will also have important applications in lineage tracing for developmental biology and high-resolution manipulation of organelles in living single cells for investigating the specific causes of diseases and the development of novel therapeutics.


Authors of the paper include Weikang Hu, Yanmei Ma, Zhen Zhan, Danish Hussain, and Chengzhi Hu.
