Developing weak-acid washing strategy for layered nickel-rich cathode

Peer-Reviewed Publication

Beijing Institute of Technology Press Co., Ltd

Borate-Ethanol Washing

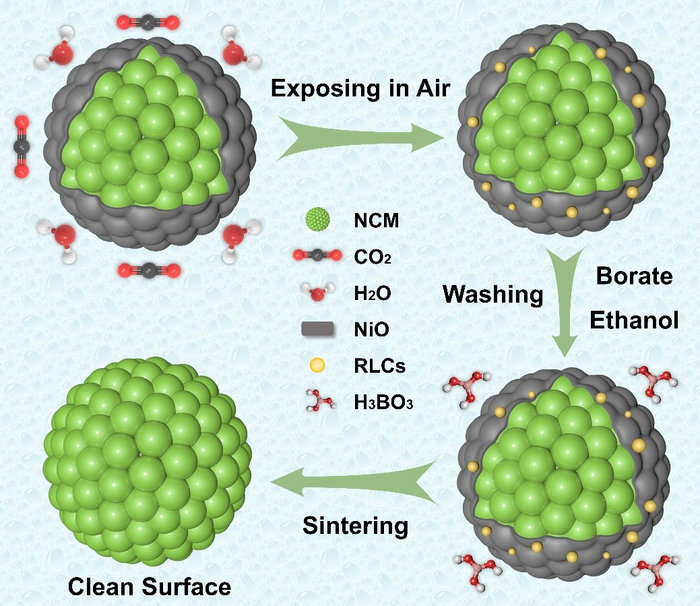

image: The schematic diagrams for the borate-ethanol washing process of LiNi0.8Co0.1Mn0.1O2 materials view more

Credit: [Lai Chen, Beijing Institute of Technology]

They published their work on Jan. 1st in Energy Material Advances.



“Satisfying the requirements of cost and performance is imperative for commercialized batteries,” said paper author Lai Chen, associate professor at School of Materials Science and Engineering in Beijing Institute of Technology. “Currently, lithium-ion batteries have been widely adopted in the vehicle market, but they still require further development to maintain competitive advantage among competitors.”



Chen explained that automotive-type lithium-ion batteries have strict requirements on the cathode materials, such as high specific capacities, suitable discharge potentials, rapid transport kinetics, and good structure stability.



“Among the various candidates of cathode materials, layered transition metal oxides are highly attractive due to their high specific capacities and working voltages,” Chen said. “In terms of nickel contents, layered nickel-rich cathode with nickel content above 80% have advantages in capital cost, gravimetric capacity, and energy density, which are important factors for the commercial application.”



But severer problems always come along with higher nickel fractions in layered nickel-rich materials. According to Chen, one of the most aggravating problems is the formation of surface impurity phases like the rock-salt NiO phase and residual lithium compounds. The formation mechanisms of these impurity phases are ascribed to the intrinsic properties of layered nickel-rich materials. The insulating rock-salt phase blocks the Li+/electron diffusion pathways, worsening the electrochemical performance of layered nickel-rich materials. The residual lithium compounds will deteriorate the comprehensive performances and cause trouble in the subsequent electrode manufacturing process.



To remove these harmful surface impurity phases for practical application, Chen said most battery companies had adapted the washing process to stir the cathode powders in purified water for a few hours. These washing processes could significantly reduce the surface impurity phases and powder pH value. However, the increased chemically sensitive and prolonged process time still raise the capital costs. Chen and his team reviewed the latest work, comparing the several modification strategies to eliminate undesired surface impurity phases in which future research should focus.



“Notably, the use of acidic treatments has also been demonstrated to eliminate the surface impurity phases and alter the surface structure of Ni-rich materials,” Chen said. “In this paper, layered nickel-rich material is etched with a trace amount of boric acid and used as a model to demonstrate the influences of weak acid treatment on the surface phase regulations. Our aim is to provide inspiration for future research in the field.”



“The different acid treatment always contains three stages, including the acid-base neutralization between surface impurity phases and acid, Li+/H+ ion exchange and transition metal dissolution reactions between crystal structure and acid, and potential coating reactions during the secondary calcination process.” According to Chen, considering the difference in particle size, inhomogeneity of surface impurity phases, and non-instantaneous characteristics of the etching process, it is hard to precisely control the reaction degree between Ni-rich cathode and acid solution.



“Different from the harmful Li+/H+ exchange and transition metal dissolution reactions during flushing with plenty of water or strong acids, this treatment of ethanol solution with a trace of H3BO3 will mediate the reaction with intrinsic NiO phase and residual lithium to maintain the structure stability and prolong the cycle life,” Chen said. “Our work only uses lower concentrations and short-duration H3BO3 washes to induce chemical changes and improve the electrochemical stabilities of Ni-rich cathode, which shows better storage performance and is of great significance for practical application.”



“We provided a novel, efficient, and low-cost strategy to eliminate the surface impurity phases and improve the electrochemical performances of layered nickel-rich material,” Chen said. “Such weak acid washing strategy is suitable for large-scale production, thus promoting the potential practical application.”



“Our findings confirmed the negative effects of intrinsic NiO phase and residual lithium compounds on the surface of Ni-rich materials and improved the traditional understanding of acid modification,” Chen said. “The effect of washing parameters such as solid-liquid ratio, washing time, and the concentration of weak acid to materials is still an issue to be systematically examined. In addition, further studies are needed to make a real-time verification of these potential chemical reactions between weak acid and surface impurity phases. Overall, there is a long way to go for the large-scale application of weak acid washing process.”



Other contributors include Feng Wu, Jinyang Dong, Qi Shi, Yuanlin Nie, Yun Lu, Liying Bao, Ning Li, Shi Chen, and Yuefeng Su, Beijing Key Laboratory of Environmental Science and Engineering, School of Materials Science and Engineering, Beijing Institute of Technology; Gang Chen, Lenovo (Beijing) Co., Ltd., and Tinglu Song, Experimental Center of Advanced Materials, School of Materials Science and Engineering, Beijing Institute of Technology.



The present work was supported by the National Key R&D Program of China (2021YFB2401800), National Natural Science Foundation of China (2217090605, 21875022), Natural Science Foundation of Chongqing, China (cstc2020jcyj-msxmX0654, cstc2020jcyj-msxmX0589). This work used resources of Beijing Synchrotron Radiation Facility (2021-BEPC-PT-005924, 2021-BEPC-PT-005967).


###



Reference


Authors: FENG WU, JINYANG DONG, LAI CHEN , GANG CHEN , QI SHI, YUANLIN NIE, YUN LU, LIYING BAO, NING LI, TINGLU SONG, SHI CHEN, AND YUEFENG SU


Title of original paper: Removing the Intrinsic NiO Phase and Residual Lithium for High-Performance Nickel-Rich Materials


Journal: Energy Material Advances


DOI: 10.34133/energymatadv.0007


Affiliations:

1Beijing Key Laboratory of Environmental Science and Engineering, School of Materials Science and Engineering, Beijing Institute of Technology, Beijing 100081, PR China.

2Beijing Institute of Technology Chongqing Innovation Center, Chongqing, 401120, China.

3Lenovo (Beijing) Co. Ltd., Beijing, 100094, China.

4Experimental Center of Advanced Materials, School of Materials Science and Engineering, Beijing Institute of Technology, Beijing 100081, PR China.


About Dr. Lai Chen:

Dr. Lai Chen obtained his Ph.D. majoring in Environmental Engineering from Beijing Institute of Technology (BIT) in 2017, and is currently an associate professor at the school of Materials Science and Engineering at BIT. His research interests focus on synthesis chemistry, nano science and developing high-energy cathode materials for LIBs.
