Enhancing carbon dioxide reduction

Researchers at Kanazawa University report in ACS Nano how ultrathin layers of tin disulfide can be used to accelerate the chemical reduction of carbon dioxide — a finding that is highly relevant for our quest towards a carbon-neutral society.

Recycling carbon dioxide (CO₂) released by industrial processes is a must in humanity’s urgent quest for a sustainable, carbon-neutral society.  For this purpose, electrocatalysts that can efficiently convert CO₂ into other, less impactful chemical products are widely researched today.  A category of materials known as two-dimensional (2D) metal dichalcogenides are candidate electrocatalysts for CO₂ conversion, but these materials also typically facilitate competing reactions, which compromises their efficiency.  Yasufumi Takahashi from Nano Life Science Institute (WPI-NanoLSI), Kanazawa University and colleagues have now identified a 2D metal dichalcogenide that can efficiently reduce CO₂ to formic acid, a compound that not only occurs naturally but also is an intermediate product in chemical synthesis.

Takahashi and colleagues compared the catalytic performance of 2D sheets of disulfide (MoS₂) and tin disulfide (SnS₂).  Both are 2D metal dichalcogenides, with the latter of particular interest because pure tin is a known catalyst for the production of formic acid.  Electrochemical tests of these compounds revealed that with MoS₂, instead of CO₂ conversion, hydrogen evolution reaction (HER) was promoted.  HER refers to a reaction yielding hydrogen, which can be useful when the production of hydrogen gas fuel is intended, but in the context of CO₂ reduction it is an unwanted competing process.  SnS₂, on the other hand, showed good CO₂ reduction activity and suppressed HER.  The researchers also carried out electrochemical measurements for bulk SnS₂ powder, which was found to have less catalytic CO₂ reduction activity.

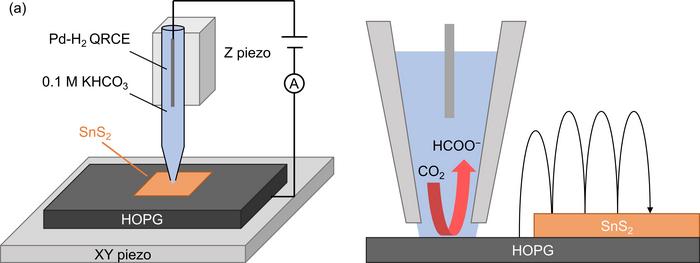

To understand where the catalytically active sites are in SnS₂, and why the 2D material performs better than the bulk compound, the scientists applied a method called scanning electrochemical cell microscopy (SECCM).  SECCM is used as a nanopipette to form the meniscus shape nanoscale electrochemical cell for the surface reactivity sensing probe on the sample.  The measurements revealed that the whole surface of the SnS₂ sheet is catalytically active, not only ‘terrace’ or ‘edge’ features in the structure.  This also explains why 2D SnS₂ has enhanced activity compared to bulk SnS₂.

Calculations provided further insights into the chemical reactions at play.  Specifically, the formation of formic acid was confirmed as an energetically favorable reaction pathway for when using 2D SnS₂ as catalyst.

The results of Takahashi and colleagues signify an important step forward towards the use of 2D electrocatalysts in electrochemical CO₂ reduction applications.  Quoting the scientists: “These findings will provide a better understanding and design strategies for metal dichalcogenide-based 2D electrocatalysis for electrochemical CO₂ reduction to produce hydrocarbons, alcohols, fatty acids and olefins without by-products.”

Background

Two-dimensional metal dichalcogenides

Two-dimensional (2D) metal dichalcogenide sheets (or monolayers) are materials of the type MX₂, with M a metal atom like molybdenum (Mo) or tin (Sn) and X a chalcogen atom like sulfur (S). The structure can be represented as a layer of X atoms on top of a layer of M atoms on top of a layer of X atoms again. 2D metal dichalcogenides belong to the so-called class of 2D materials (also including graphene), a reference to their extreme thinness. 2D materials typically have different physical properties than their bulk (3D) counterparts.

2D metal dichalcogenides have been studied for their hydrogen evolution reaction (HER) electrocatalytic activity, a chemical process yielding hydrogen.  But now, Yasufumi Takahashi from Kanazawa University and colleagues have found that the 2D metal dichalcogenide SnS₂ displays no HER catalytic activity; instead, it is a catalyst for the electrochemical reduction of carbon dioxide (CO₂) to formic acid — an extremely relevant property in the context of strategies for reducing the global CO₂ footprint.
