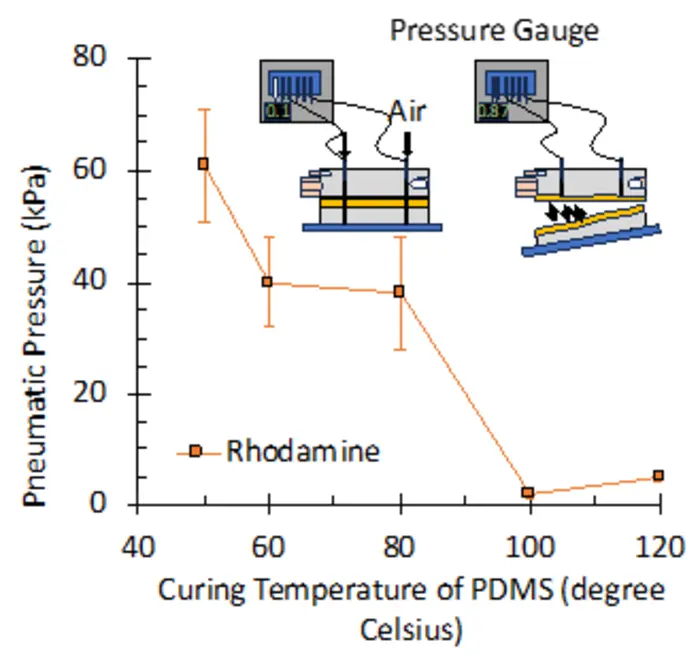

Figure 2: Impact of PDMS Curing Temperature on SlipChip Sealing Strength. (IMAGE)

Toyohashi University of Technology (TUT)

Figure 2: Impact of PDMS Curing Temperature on SlipChip Sealing Strength.

Caption

This graph illustrates the maximum pneumatic pressure (rupture pressure in kPa) that PDMS SlipChip devices can withstand. Devices were cured at various temperatures (50°C to 120°C) and lubricated with 120 mPa·s silicone oil. The test, using a Rhodamine solution, shows that lower curing temperatures (e.g., 50°C) result in significantly higher sealing strength.

Credit

COPYRIGHT（C）TOYOHASHI UNIVERSITY OF TECHNOLOGY. ALL RIGHTS RESERVED.

Usage Restrictions

None

License

Original content

Disclaimer: AAAS and EurekAlert! are not responsible for the accuracy of news releases posted to EurekAlert! by contributing institutions or for the use of any information through the EurekAlert system.
