Figure 3 | Optical performance and functional verification. (IMAGE)

Light Publishing Center, Changchun Institute of Optics, Fine Mechanics And Physics, CAS

Figure 3 | Optical performance and functional verification.

Caption

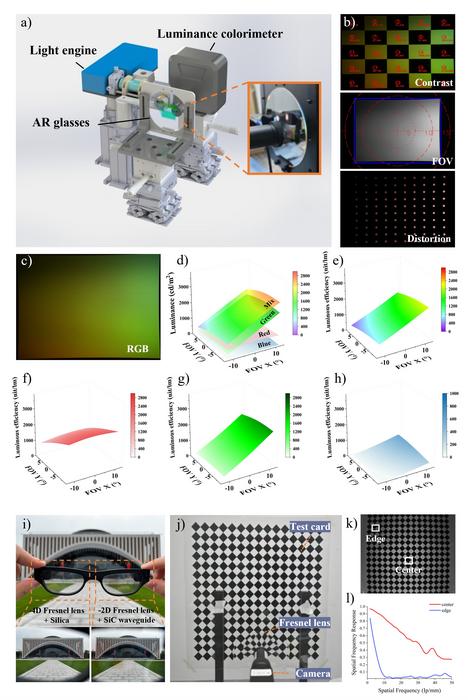

Figure 3 | Optical performance and functional verification. a, Custom-built optical testing platform. b, Test results for contrast (top), field of view (FOV) (middle), and distortion (bottom). c, Full-color RGB display. d-h, Out-coupling luminance maps and luminous efficiency maps at 632, 524, and 467 nm wavelengths. i, Vision correction with the ultra-thin Fresnel lens. j-l, Setup and results for the image clarity test, showing the spatial frequency response (SFR) at the center and edge regions.

Credit

Boqu Chen, Ce Li et al.

Usage Restrictions

Credit must be given to the creator.
