Bioinformatics prediction of interactions between microRNAs and target genes. (IMAGE)
Caption

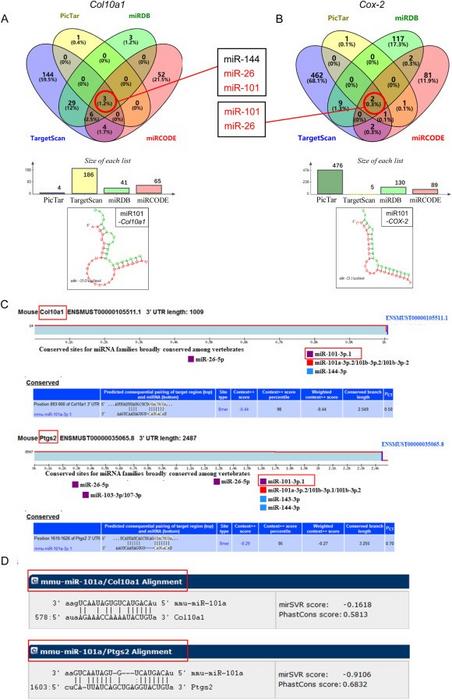

(A, B) The Venn diagram displaying miR-101a-3p computationally predicted to target Col10a1 and Cox-2 by four different prediction algorithms: TargetScan, PicTar, miRDB, and miRCODE. The structure of the predicted duplex by PicTar was shown.
(C) TargetScan bioinformatics prediction result of Col10al and Ptgs2 (Cox-2) was performed.
(D) miRanda Bioinformatics prediction result of Col10a1 and Ptgs2 (Cox-2).
