Figure 3 | Programmable transfer of microchips for flexible full-color display. (IMAGE)
Caption

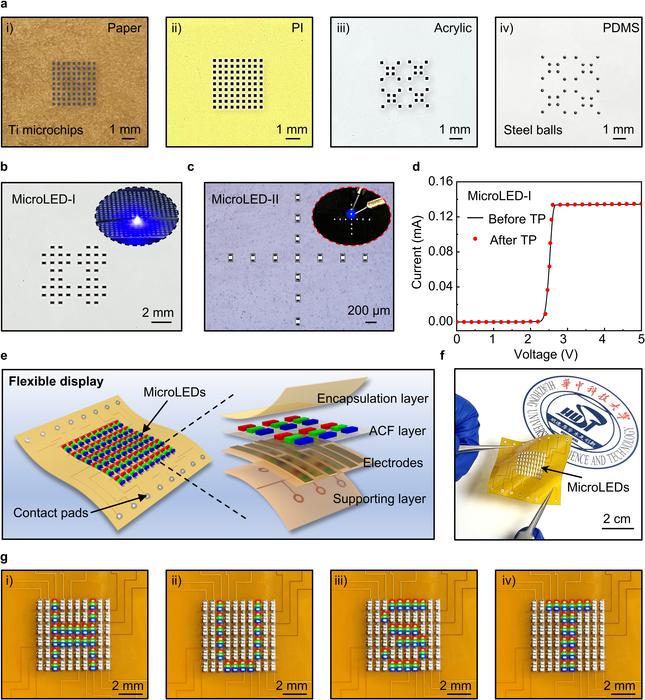

Figure 3 | Programmable transfer of microchips for flexible full-color display. a, Optical images of programmable transfer of titanium chips (200 µm × 200 × 30 µm) and steel balls (200 µm in diameter) on paper, PI, acrylic board and PDMS substrates. b-c, Optical images of selective transfer of 400 µm × 200 µm × 30 µm MicroLEDs (b) 160 µm × 80 µm × 20 µm MicroLEDs (c). d, Electrical properties of 400 µm × 200 µm × 30 µm MicroLEDs before and after the transfer process. e Exploded schematic diagram of the flexible full-color display. f, Optical image of the MicroLEDs (400 µm× 200 µm× µm 30 µm) display. g, Optical images of the flexible full-color display showing the letters of ‘HUST’.
Credit
YongAn Huang et al.
Usage Restrictions
Credit must be given to the creator.
License
CC BY
