Figure 2 | Parallel synthesis of soliton molecules. (IMAGE)
Caption

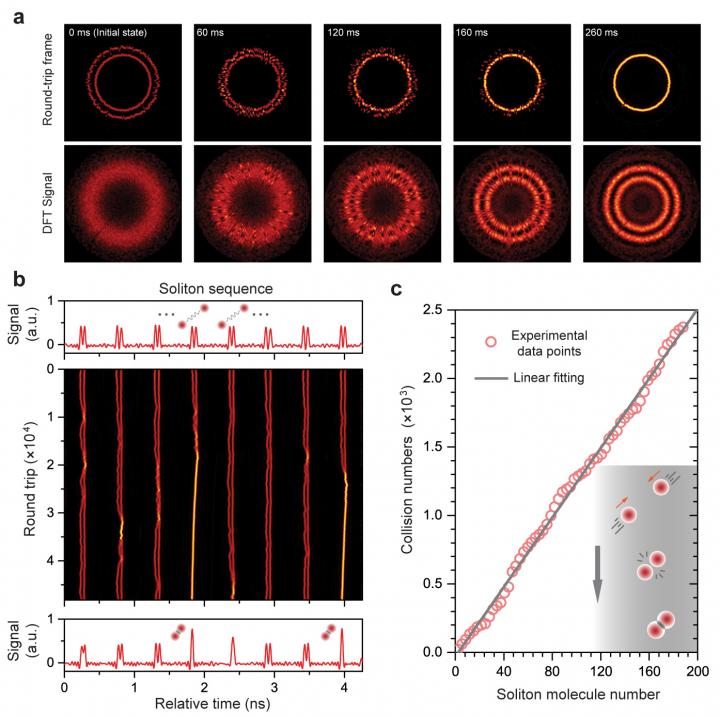

a. Top panels: Selected frames from an experimental recording of the synthesis process over all 195 reactors, plotted in cylindrical coordinates Bottom panels: The corresponding DFT signal. The stable spectral fringes in the DFT signal indicates formation of phase-locked soliton molecules. b. Time-domain evolution in 8 consecutive time-slots over the initial 49,000 round-trips (~5 ms). c. Cumulative number of soliton collisions is proportional to the number of soliton molecules in all 195 reactors during a single synthesis (red circles).
Credit
by Wenbin He, Meng Pang, Dung-Han Yeh, Jiapeng Huang, Philip St.J. Russell
