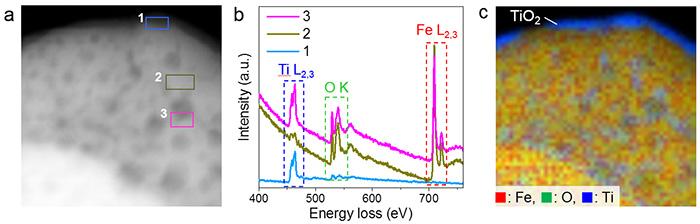

図3 (IMAGE) Kobe University Caption 図3:Ti含有ヘマタイトメソ結晶におけるTiO2膜形成 (a) 700℃で加熱したTi含有ヘマタイトメソ結晶の高角度環状暗視野STEM像。粒子上の暗い部分は細孔を示している。 (b) EELSスペクトル。領域1 (メソ結晶の外表面) は、TiとOを含み、Feをほとんど含まない。領域2 (メソ結晶の平坦な表面) は、領域3 (メソ結晶の細孔部分) と比べ、Tiの比率が低い。 (c) Fe、O、Tiの空間分布マップ。 Credit 神戸大学 Usage Restrictions None License Licensed content Disclaimer: AAAS and EurekAlert! are not responsible for the accuracy of news releases posted to EurekAlert! by contributing institutions or for the use of any information through the EurekAlert system.
