Understanding flow and sound through large-scale computations

Collaborative research on flow and acoustic fields in an expanding pipe with orifice plates

Peer-Reviewed Publication

Toyohashi University of Technology (TUT)

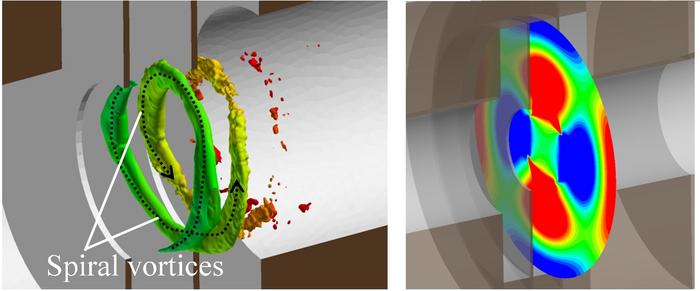

Spiral vortices in expanding pipe (left) and generated acoustic field (right)


Spiral vortices in expanding pipe (left) and generated acoustic field (right)

view more



In a research collaboration between the group of Professor Hiroshi Yokoyama of the Department of Mechanical Engineering and KOBE STEEL, LTD., flow and acoustic fields in an expanding pipe with orifice plates were studied using a computational methodology developed by Prof. Yokoyama's group. The flow fields, including the various vortical structures and generated acoustic fields, were explained for the first time.



Expanding pipes with orifice plates are often used as silencers in fluid machinery. However, intense tonal sounds can be generated from the flow through these expanding pipes. Yet, the flow and sound in such complex configurations are not well understood.

To understand the mechanism of tonal sound from a flow through a circular expanding pipe with two orifice plates and the conditions for intense acoustic radiation, the flow and acoustic fields were directly studied based on a large-scale computational methodology developed by Professor Yokoyama's group at the Toyohashi University of Technology in collaboration with KOBE STEEL, LTD.

The computational results show that tonal sound radiation occurs because of the collision of the vortices with the orifice plates or the downstream edge of the expanding pipe. The vortical structures were found to change with velocity and orifice radius, where spiral vortices, vortex rings, and arch-shaped vortices appeared, as shown in the figure. This change led to variations in the frequency and mode of the primary sound. The results were published in Physics of Fluids (March 2024).


Future Outlook

Based on the findings from this study, research and development for the realization of a system with low environmental cost, including fluid machinery, are planned in the future. During the development of the computational methodology, wind tunnel experiments are performed under various conditions, and the results are compared with those predicted to validate the computational methods. Although the generation of various vortices such as spiral vortices and the corresponding acoustic mode is clarified, the basic mechanism for the generation of these vortices is not completely understood and requires further investigations in the future.



Title:Fluid–acoustic interactions around an expanding pipe with orifice plates

Authors:Akitomo FUKUMA, Manato KAWAI, Nini FURUKAWA, Kenji KAWASAKI, Ichiro YAMAGIWA, Masahito NISHIKAWARA, Hiroshi YOKOYAMA

Journal:Physics of Fluids, 36(3), 036116
