Nano‑space confinement drives rational closed pore design in hard carbons for high‑capacity and high‑rate sodium storage

As the global demand for sustainable and cost-effective energy storage intensifies, sodium-ion batteries (SIBs) are emerging as a compelling alternative to lithium-ion systems, particularly given the abundant sodium reserves in the earth's crust. However, limitations in energy and power densities currently restrict SIBs to supplementary roles, with the performance ceiling of hard carbon (HC)—the most viable anode material—remaining ambiguous due to unclear sodium-storage mechanisms. Now, researchers from Zhengzhou University, led by Professor Jianhua Zhu, Professor Yijun Cao, and their collaborators including Run Ren and Ling Zhang, have presented a breakthrough strategy that bridges the gap between theoretical capacity and practical performance in HC anodes.

Why This Anode Matters

Traditional hard carbon anodes typically suffer from underutilized closed pores—only about 60% are filled during sodiation—and a persistent trade-off between plateau capacity and rate capability. The novel nano-space confinement strategy overcomes these limitations by enabling a coupled "intercalation-pore filling" mechanism within rationally designed stage-wise closed pores, combining battery-level capacity with supercapacitor-like rate performance.

Innovative Design and Mechanism

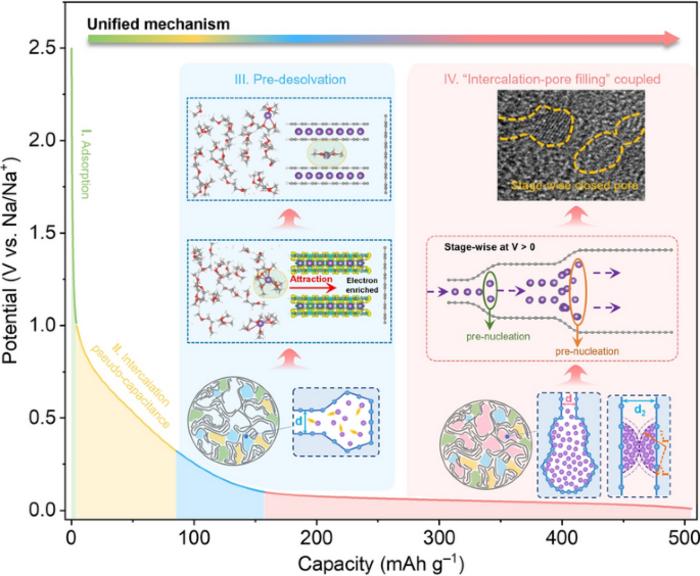

The material is synthesized through controlled crosslinking of resorcinol-hexamethylenetetramine resins, followed by temperature-assisted pyrolysis. DFT calculations and ab initio molecular dynamics simulations reveal that nano-space confinement is the fundamental origin governing Na-storage behavior. The energy barrier for Na-cluster growth decreases as nanocavity size decreases, yet spontaneous growth in large cavities remains energetically unfavorable at positive potentials (V > 0). The critical breakthrough: energetically favorable Na-ion intercalation into narrow orifices (0.4–0.6 nm) triggers stepwise pre-nucleation, reducing energy barriers for spontaneous quasi-metallic Na-cluster growth in progressively larger cavities (up to ~2.0 nm) at V > 0. The internal graphitic defects and cation-disordered structure create interconnected diffusion pathways, enabling highly coupled storage throughout the bulk material.

Outstanding Performance

The optimized HC-1300 electrode delivers a high reversible capacity of ~500 mAh g^-1 and maintains 344 mAh g^-1 at an ultrahigh rate of 2000 mA g^-1. The material exhibits characteristic signatures of high-performance sodium storage: a dominant low-potential plateau and 83.3% capacity retention over 1,000 cycles at 500 mA g^-1. Notably, it achieves a high reversible capacity of 388.5 mAh g^-1 even at a high areal loading of 3.7 mg cm^-2.

Applications and Future Outlook

When paired with a Na₃V₂(PO₄)₃ cathode in coin-type full cells, the device achieves an average voltage of 3.25 V and a high capacity of 447 mAh g^-1 (based on anode mass) at 50 mA g^-1, with 83.9% capacity retention after 200 cycles. More impressively, 1.5 Ah Na-ion pouch cells assembled with commercial Na₄Fe₃(PO₄)₂P₂O₇ cathodes deliver an energy density of 147.4 Wh kg^-1 and exhibit only 0.064% capacity loss per cycle over 700 cycles at 2000 mA. This work establishes a new family of design principles for intercalation-pore filling materials, opening promising avenues for next-generation sodium-ion batteries combining high safety, fast charging, and high energy density.

Stay tuned for more groundbreaking research from this collaborative team at Zhengzhou University and their partners!
