Emerging device by the fusion of IGZO and ferroelectric-HfO2

Next generation memory with low-power, high-speed, and high capacity

Peer-Reviewed Publication

Japan Science and Technology Agency

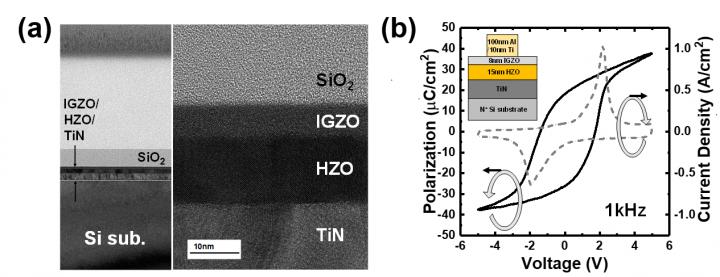

Figure 2

image: (a) Cross-sectional TEM image of a TiN/HfZrO2/IGZO capacitor. Each layer was uniformly formed. HfZrO2 layer is uniformly crystallized having ferroelectric phase. (b) Measured polarization charge versus voltage of a TiN/HfZrO2/IGZO capacitor. Clear ferroelectricity was confirmed. view more

Credit: Masaharu Kobayashi

As a part of JST PRESTO program, Associate professor Masaharu Kobayashi, Institute of Industrial Science, the University of Tokyo, has developed a ferroelectric FET (FeFET) with ferroelectric-HfO2 and ultrathin IGZO channel. Nearly ideal subthreshold swing (SS) and mobility higher than poly-silicon channel have been demonstrated.

FeFET is a promising memory device because of its low-power, high-speed and high-capacity. After the discovery of CMOS-compatible ferroelectric-HfO2 material, FeFET has been attracting more attentions than ever before. For even higher memory capacity, 3D vertical stack structure has been proposed as shown in Fig. 1(a).

For 3D vertical stack structure, poly-silicon is typically used as a channel material. However, poly-silicon has very low mobility in nanometer thickness region due to grain boundaries and extrinsic defects. Moreover, poly-silicon forms a low-k interfacial layer with ferroelectric-HfO2 gate insulator. This results in voltage loss and charge trapping which prevents low voltage operation and degrades reliability, respectively as shown in Fig. 1(b).

To solve these problems, in this study, we proposed a ferroelectric-HfO2 based FeFET with ultrathin IGZO channel. IGZO is a metal-oxide semiconductor and can avoid low-k interfacial layer with ferroelectric HfO2 gate insulator. Moreover, since IGZO is N-type semiconductor and typically used in junctionless transistor operation, charge trapping, which seriously happens in inversion mode operation, can be avoided as shown in Fig. 1(b).

First, we systematically investigated optimum IGZO channel thickness. As IGZO thickness decreases, SS is reduced and threshold voltage (Vth) increases. To realize steep SS and normally-off operation, 8nm was chosen. Next, we fabricated TiN/HfZrO2/IGZO capacitor. HfZrO2 is the ferroelectric layer. Cross-sectional TEM image shows that each layer was uniformly formed as shown in Fig. 2(a). GIXRD spectrum was taken and ferroelectric phase was confirmed. By electrical characterization, we confirmed clear ferroelectric property with IGZO capping on HfZrO2 as shown in Fig. 2(b). It should be noted that, in the current device design, back-gate is needed with buried oxide to fix body potential. Without back-gate, body potential is floating and voltage cannot be sufficiently applied on ferroelectric-HfO2 gate insulator, which was confirmed by TCAD simulation. Based on these device design, we fabricated a FeFET with ferroelectric-HfO2 and ultrathin IGZO channel. Fig. 3(a) shows the measured drain-current versus gate-voltage after applying write and erase pulse voltages. 0.5V memory window and nearly ideal SS of 60mV/dec was obtained. In addition, field-effect mobility is about 10cm2/Vs as shown in Fig. 3(b), which can be higher than poly-silicon at the same thickness.

The achievements in this study will open a new path for realizing low-voltage and highly reliable FeFET with 3D vertical stack structure. This leads to enabling ultralow power IoT edge devices, deploying highly sophisticated network system, and thus providing more strategic social services utilizing big data.


This work was presented in VLSI Technology Symposium 2019 on June 11th in 2019, which was held in Kyoto, Japan.
